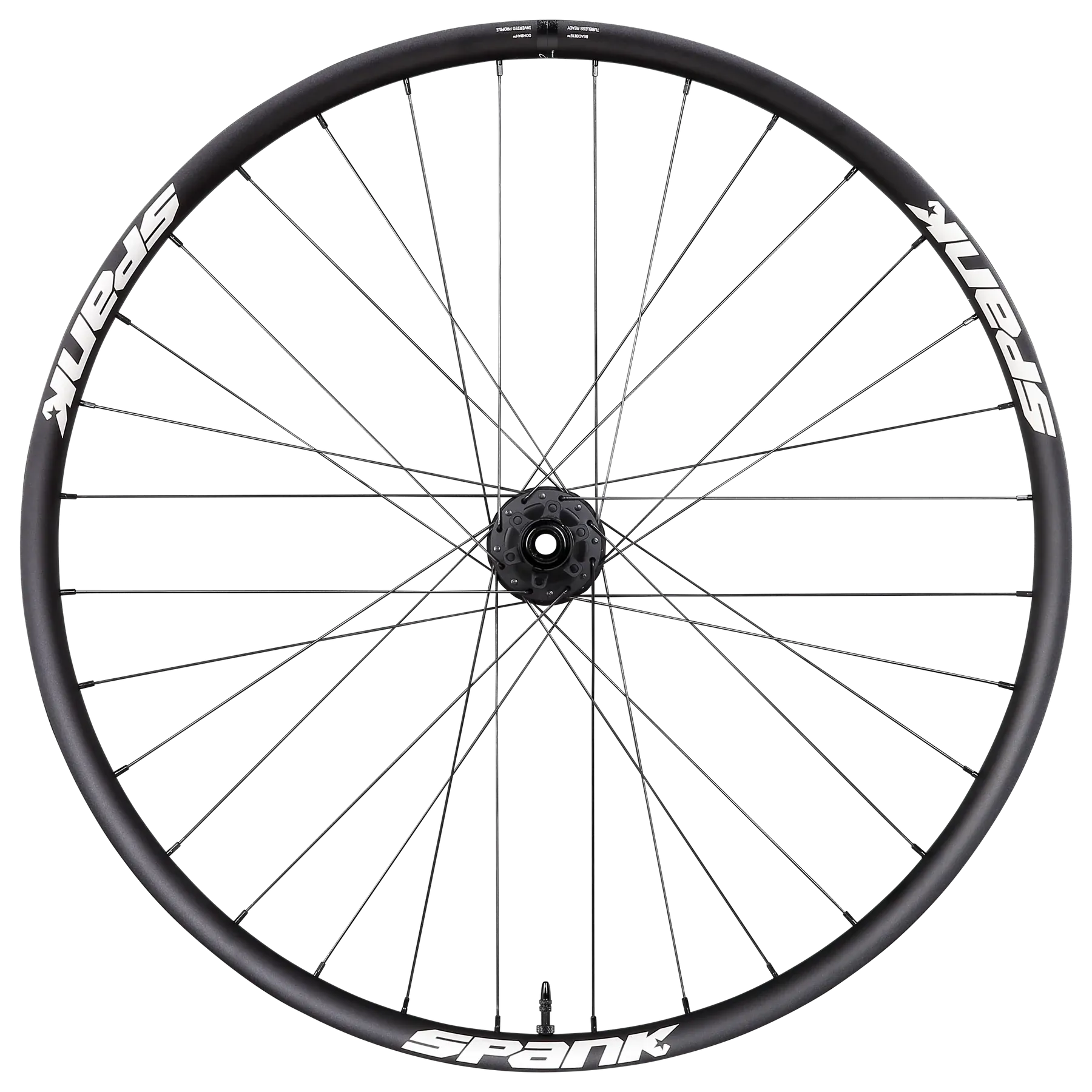

- A high-performance alloy rim designed for freeride, enduro and downhill race use
- Tubeless ready with anti-burp rim hooks to prevent the loss of pressure and keep tires firmly in place
- 32 holes with an inner width of 28mm and outer width of 33mm to optimize tire spread and enhance traction
- The corrugated rim center adds exceptional strength, making it more rigid and allowing the rim to be wider without adding material
- Shotpeen finish to increase fatigue life and make it more durable
FRONT WHEELS TO PAIR WITH:
CLASSIFICATION & INTENDED USE: ASTM 5
| ALL MOUNTAIN | TRAIL | ENDURO | FREERIDE |
|---|---|---|---|
| DOWNHILL | GRAVEL | XC | E-BIKE |
| - | - | * |
* Recommended for E-Bike when adapting with SPANK HEX DRIVE steel freehub (available as seperate purchase in HG, XD and Microspline. (See )
HUMAN FACTOR
SPANK's recommendations for what body type and ride style this product is suited to.
| BODY WEIGHT & RIDE STYLE: | Heavy Rider | Medium Rider | Light Rider |
|---|---|---|---|
| Heavy Impact | |||
| Light impact |
RIM SPECIFICATIONS
| HOLE COUNT: | 32 |
|---|---|
| INNER WIDTH (mm): | 28 |
| 33 | |
| PROFILE HEIGHT: | 22 |
| TYRE FIT | 1.9" to 2.5" |
BUILD SPECIFICATIONS
| BUILD: | Handbuilt |
|---|---|

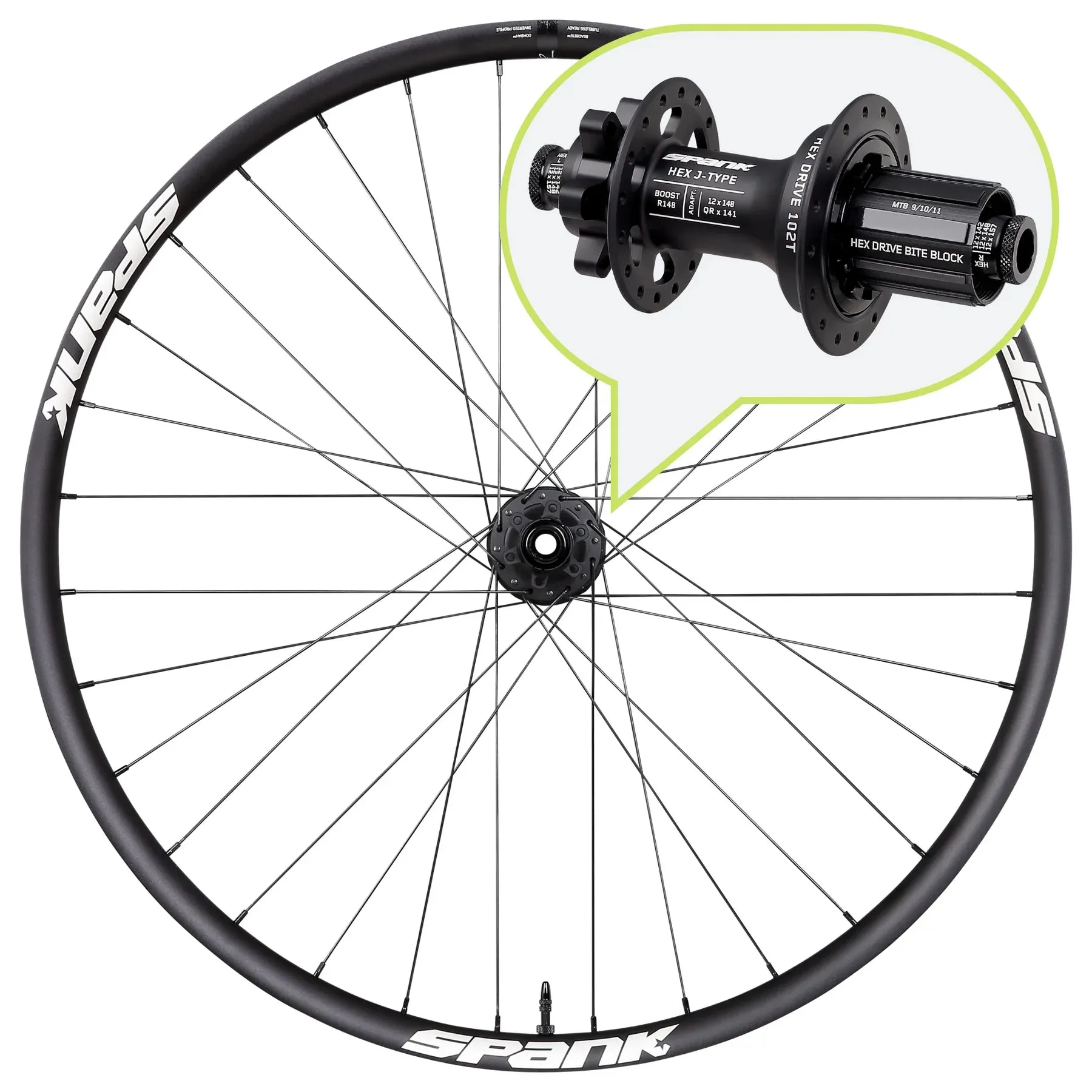

| HUB: | SPANK HEX J-TYPE |
| J-Hook, tripple butted 2.2/1.8/2.0 | |
| NIPPLES: | Brass external |
| LACING: | 3 cross lacing |
| VALVE: | F/V Presta |
| TUBELESS: | Tubeless taped & valved |
HUB SPECIFICATIONS:
| ENGAGEMENT: | |
|---|---|
| HOLE COUNT: | |
DISC MOUNT: | |
| MATERIAL: |
VARIANT SPECS
(Available factory standard in XD and Shimano HG. Microspline freehubs available).
| HUB | HUB SPACING | BOOST | FREEHUB | HOLE COUNT | ADAPTER INCL. | WEIGHT | ERD | ETRTO | SPOKE LENGTH | SPOKE LENGTH | |
| 26" | 12x142 | - | HG | 32H | 12x135 | 997g | 529 | 559x28 | R-255 | L-258 | |
| - | XD | 32H | 12x135 | 989g | |||||||
| 12x150 | - | HG | 32H | 12x157 | 1008g | ||||||
| 12x150 | - | XD | 32H | 12x157 | 1000g | ||||||
| S/S BOLT ON | 10x135 | - | 11T | 32H | - | 1124g | |||||
| 27.5" | - | HG | 12x135 | 1038g | 554 | 584x28 | R-266 | L-269 | |||
| - | XD | 1030g | |||||||||
| 12x150 | - | HG | 12x157 | 1049g | |||||||
| - | XD | 1041g | |||||||||
| 12x148 | BOOST | HG | - | 1044g | |||||||
| 12x148 | BOOST | XD | - | 1036g | |||||||
| 29" | 12x150 | - | HG | 12x157 | 1086g | 591 | 622x28 | R-285 | L-288 | ||
| - | XD | 12x157 | 1078g | ||||||||
| HG | - | 1081g | |||||||||
| XD | - | 1073g |
Use the table below to determine compatible adapters & service parts, or visit the service parts collection by .
ADAPTERS COMPATIBLE WITH SPANK HEX J-TYPE REAR HUBS
Boost R148: | HEX Rear Hub QRx135/141 Adapter |
|---|---|
R150/157: | N/A |
R135/142: | HEX Rear Hub QRx135/141 Adapter |
HEX Rear Hub 10x135 Adapter |
SERVICE KITS COMPATIBLE WITH SPANK HEX J-TYPE REAR HUBS
HEX Rear HG/HGR Hub Replacement Bearing Kit |
HEX Rear XD/XDR Hub Replacement Bearing Kit |
HEX Boost Rear Hub Alloy Axle Shaft |
HEX Rear Hub 135/142mm Alloy Axle Shaft |
HEX Rear Hub 150/157mm Alloy Axle Shaft |
HEX Rear Hub HG Alloy Anti-Bite Freehub |
HEX Rear Hub XD Alloy Freehub |
