THE SWEET SPOT

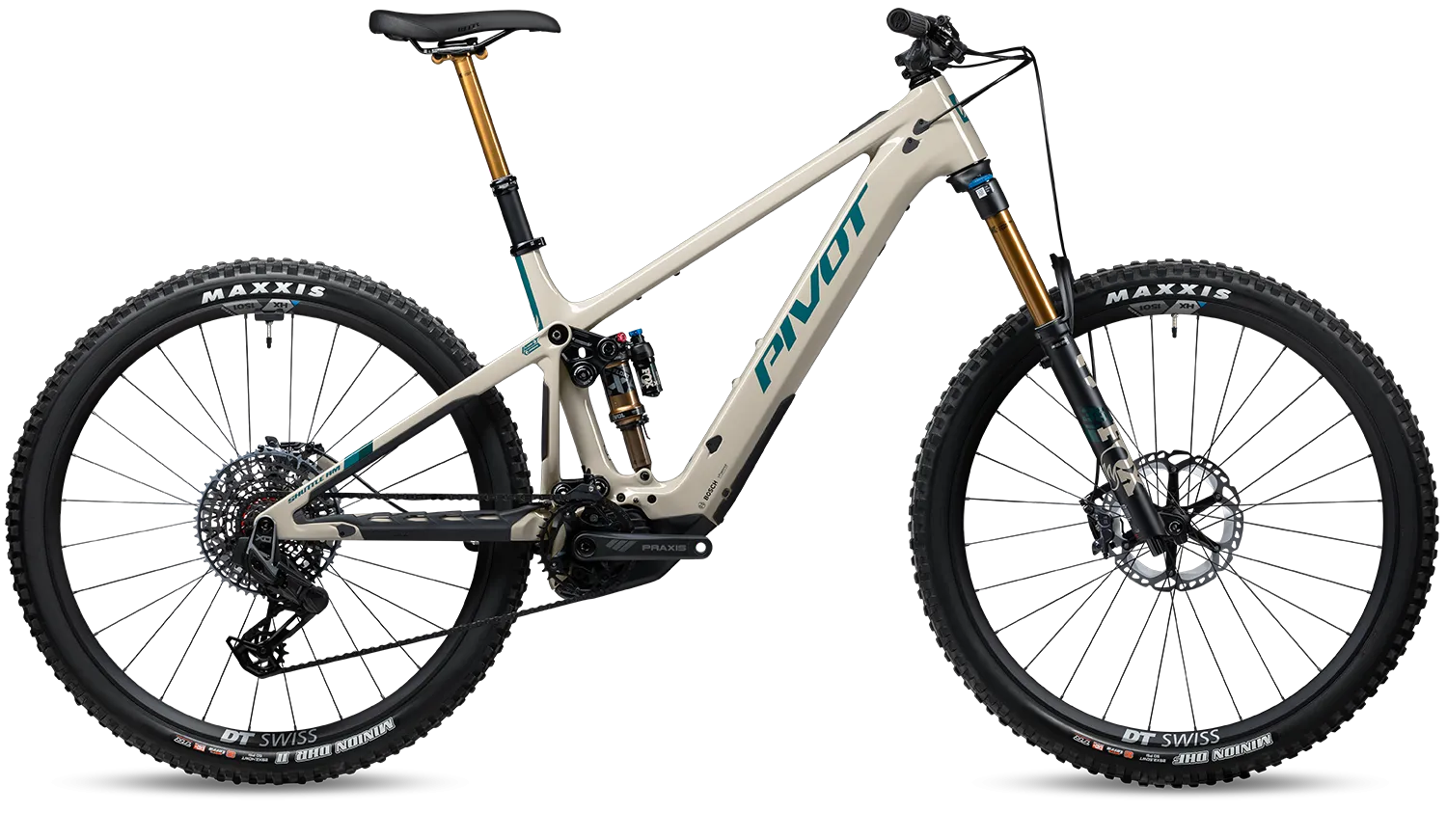

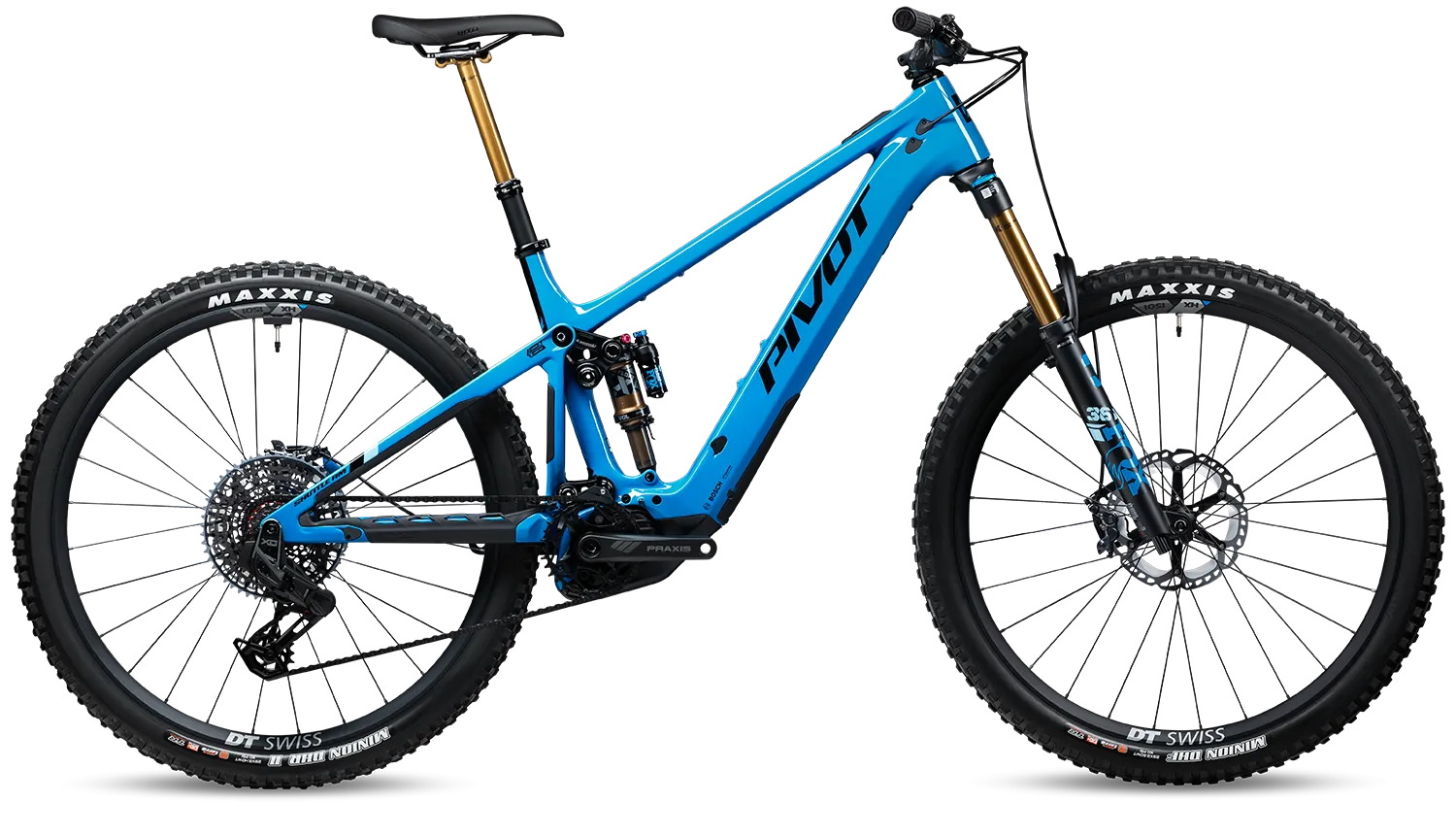

The Shuttle AM doesn’t shy away from touting itself as an all-mountain masterpiece that dominates the realm of e-mountain performance. This awe-inspiring e-bike strikes the perfect chord, delivering an unmatched blend of lightweight agility and long-travel prowess that hits the all-mountain sweet spot. So, brace yourself as Pivot introduces the Shuttle AM, an e-bike that conquers every type of terrain with ease, from fast-flowing singletracks to breathtaking back country descents.

BOSCH PERFORMANCE DRIVE SYSTEMS

• Powered by the latest Bosch Performance drive systems, all Shuttle AM models deliver class leading performance. The range-topping Team build features Bosch’s all new, limited-edition Performance CX Race motor, enabling the ability to select the optional “Race” mode that reverberates with the bike’s DNA of pure velocity.

DW-LINK

• Pivot’s masterfully tuned dw-link with Fox suspension swallows any terrain with total confidence and control, with enough platform to feel lively and pedal efficiently, and enough progression to crush rock gardens and nimbly land the biggest drops.
• dw-link is the perfect suspension platform for Pivot’s eMTB’s by providing the optimal amount of anti-squat, enabling the Shuttle AM (and all Pivot Shuttle models) to harness the full power of the drive system, with optimal traction and incredible suspension performance.

VERTICAL SHOCK LAYOUT

• The vertical shock layout enables Pivot to design a more compact frame design that is both stiffer and lighter, as well as providing for increased tunability of the Shuttle AM’s kinematics. In addition, the design allows for full size water bottle clearance on all sizes (or a range extender) and the lowest stand-over heights possible.

FLIP CHIP ADJUSTABILITY

• “High” and “Low” settings on the Pivot Flip Chip allow riders to easily configure geometry.
• Make adjustments to accommodate rider style or trail conditions.
• Moving from the “High” to “Low” setting changes the BB height from 35.0cm to 34.5cm and steepens the head and seat angles by .4 degrees.

PIVOT DOCK TOOL SYSTEM

• Pivot exclusive on-the-bike tool system created in collaboration with Topeak.
• Unweight hydration packs by strategically locating essential repair items under either the top tube.
• Available as Dock Ninja CO2, Dock Ninja Tool Box T16 , or Dock Ninja Toll Box Mini 20 Pro.

ULTRA CLEAN COMMAND CENTER

• The elegant Bosch wireless remote, SRAM wireless shifter (Team and Pro builds) and Phoenix Factory Lock-On grips mounted to our Phoenix Factory Tuned-Flex carbon bar transforms the cockpit into an ultra clean command center.

LONG LASTING BATTERY OPTIONS

• Pro and Team builds come equipped with the awe-inspiring 750Wh battery.
• Ride builds come equipped with a long lasting 625Wh battery.
• All builds have Bosch’s New PowerMore range extender capability.

BOSCH POWERMORE RANGE EXTENDER

• The Bosch PowerMore Range Extender (250Wh) is a water-bottle sized additional battery that allows extra power and range for that one last lap, or that last pedal to the truck.
• The PowerMore range extender is compatible with all Shuttle AM models.

BOSCH X PIVOT FLOW APP

• The customized Bosch x Pivot Cycles Flow app is a user-friendly mobile tool that provides seamless connectivity with Bosch-powered e-bikes.
• The system allows the user to select 4 modes from a total of 7 available modes. The Pro and Ride level builds have Turbo, eMTB-shortcrank, Sport, and Tour modes preinstalled. While the Team level build with the CX Race motor comes with the powerful Race mode in place of Tour .
• The Bosch x Pivot Cycles Flow app offers features such as recommended maintenance intervals based on mileage, find a Pivot/Bosch dealer, real-time charge percentages and estimated range all in one easy to navigate app.

VERSATILE, DIALED-IN BUILD OPTIONS

• Three no compromise build options allow all riders to select exactly the spec to complement personal riding style. Ride builds feature Fox Performance suspension, while the Pro and Team builds feature Fox Factory suspension.
• The range-topping Team build features SRAM’s new XX transmission, Shimano’s powerful XTR brakes, lightweight carbon cranks, carbon wheels and all the Fox Factory suspension.

FOX SUSPENSION

• Pro & Team level builds feature a Fox Factory Float X rear shock providing 148mm of rear travel and a Fox Factory 36mm Grip 2 fork with 160mm of travel up front.
• Ride level builds feature a Fox Performance Float X rear shock providing 148mm of rear travel and a Fox Performance 36mm Grip fork with 160mm of travel up front.

Specifications:
