Product Details
＋
- An ultra-wide, high-performance alloy rim, weight-optimized for Enduro, Trail, and All Mountain use
- 32 holes with an inner width of 26.5mm and outer width of 32mm provide ultra-wide support for Plus-Size and high-volume tires

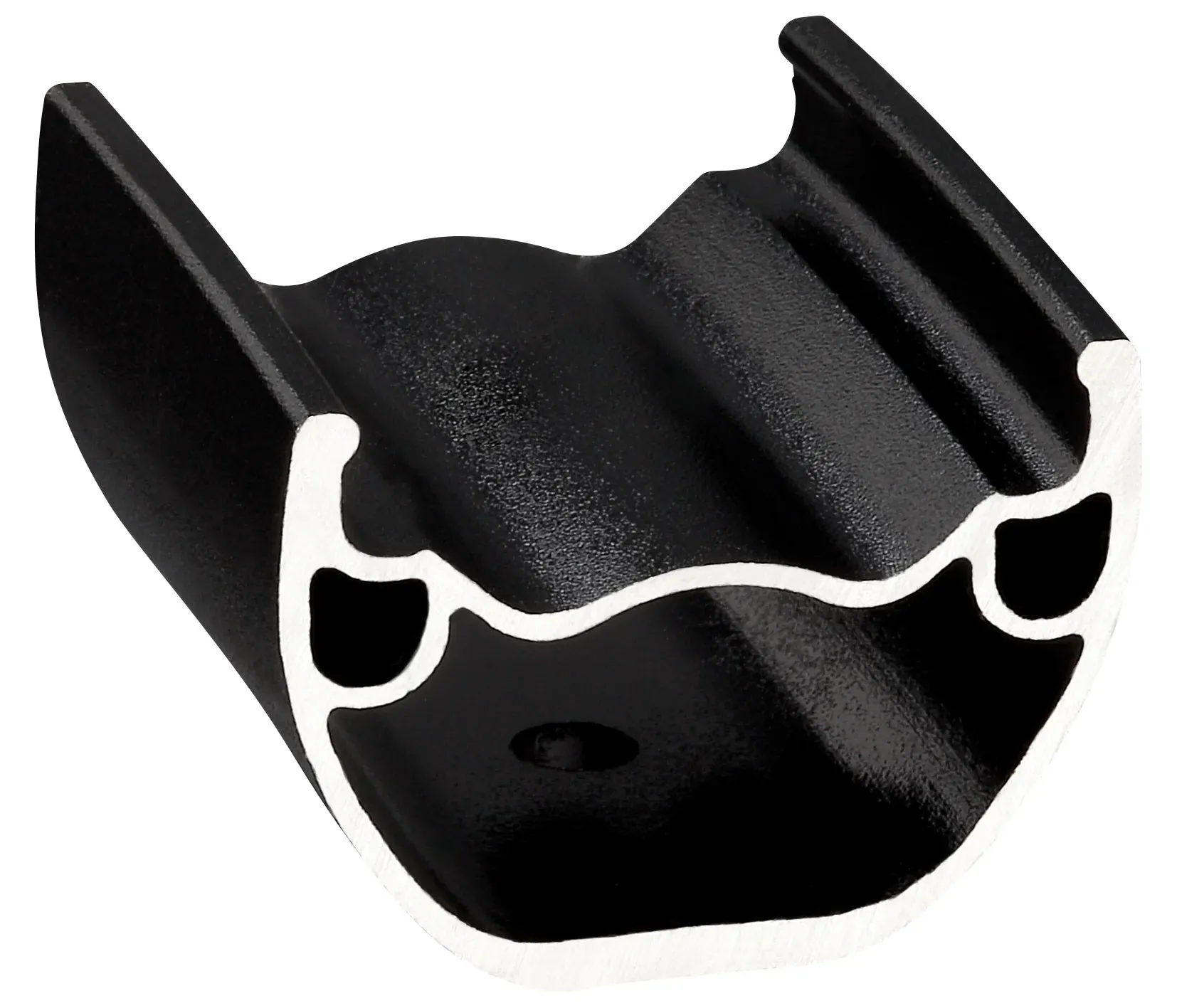

- The corrugated rim center adds exceptional strength, making it more rigid and allowing the rim to be wider without adding material
- Shotpeen finish to increase fatigue life and make it more durable
FRONT WHEELS TO PAIR WITH:
| SPOON 32 | SPIKE RACE 33 |
|---|
CLASSIFICATION & INTENDED USE: ASTM 5
| ALL MOUNTAIN | TRAIL | ENDURO | FREERIDE |
|---|---|---|---|
| DOWNHILL | GRAVEL | XC | E-BIKE |
| - | - |
HUMAN FACTOR
SPANK's recommendations for what body type and ride style this product is suited to.
| BODY WEIGHT & RIDE STYLE: | Heavy Rider | Medium Rider | Light Rider |
|---|---|---|---|
| Heavy Impact | |||
| Light impact |
RIM SPECIFICATIONS
| HOLE COUNT: | 32 |
|---|---|
| INNER WIDTH (mm): | 26.5 |
| 32 | |
| PROFILE HEIGHT: | 24 |
| TYRE FIT | 1.8" to 2.4" |
BUILD SPECIFICATIONS
| BUILD: | Handbuilt |
|---|---|
| HUB: | SPOON J-TYPE with steel freehub & axle |
| J-Hook | |
| NIPPLES: | Brass External |
| LACING: | 3 cross lacing |
| VALVE: | A/V Schrader Valve |
| TUBELESS: | No |
VARIANT SPECS
| HUB | HUB SPACING | BOOST | FREEHUB | HOLE COUNT | ADAPTER INCL. | WEIGHT | ERD | ETRTO | SPOKE LENGTH | SPOKE LENGTH | |
| 26" | SPOON J-TYPE | 12x142 | - | QRx135 | 1274g | 526.5 | 559x26.5 | R-255 | L-257 | ||
| S/S BOLT ON | 10x135 | - | 11T SS | - | 1359g | ||||||
| 12x142 | - | HG | QRx135 | 1340g | |||||||
| 12x148 | - | 1370g |
