Product Details
＋
- A high-performance alloy rim designed for freeride, enduro and downhill race use
- Tubeless ready with anti-burp rim hooks to prevent the loss of pressure and keep tires firmly in place
- 32 holes with an inner width of 28mm and outer width of 33mm to optimize tire spread and enhance traction
- The corrugated rim center adds exceptional strength, making it more rigid and allowing the rim to be wider without adding material
- Shotpeen finish to increase fatigue life and make it more durable
REAR WHEELS TO PAIR WITH:
| SPIKE RACE 33 |
|---|
CLASSIFICATION & INTENDED USE: ASTM 5
| ALL MOUNTAIN | TRAIL | ENDURO | FREERIDE |
|---|---|---|---|
| DOWNHILL | GRAVEL | XC | E-BIKE |
| - | - | * |
* Recommended for E-Bike when adapting with SPANK HEX DRIVE steel freehub (available as seperate purchase in HG, XD and Microspline. (See )
HUMAN FACTOR
SPANK's recommendations for what body type and ride style this product is suited to.
| BODY WEIGHT & RIDE STYLE: | Heavy Rider | Medium Rider | Light Rider |
|---|---|---|---|
| Heavy Impact | |||
| Light impact |
RIM SPECIFICATIONS
| HOLE COUNT: | 32 |
|---|---|
| INNER WIDTH (mm): | 28 |
| 33 | |
| PROFILE HEIGHT: | 22 |
| TYRE FIT | 1.9" to 2.5" |
BUILD SPECIFICATIONS
| BUILD: | Handbuilt |
|---|---|

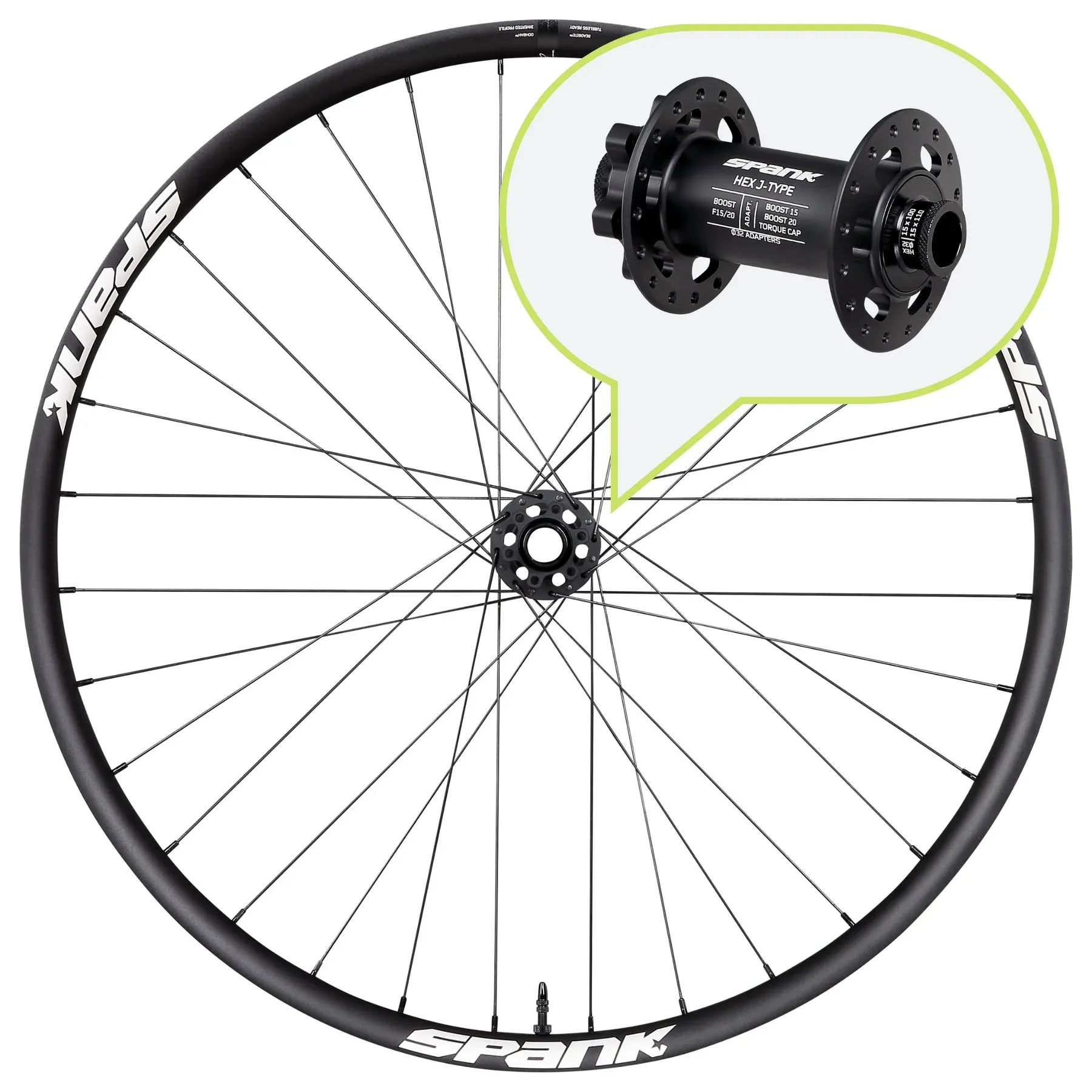

| HUB: | SPANK HEX J-TYPE |
| J-Hook, tripple butted 2.2/1.8/2.0 | |
| NIPPLES: | Brass external |
| LACING: | 3 cross lacing |
| VALVE: | F/V Presta |
| TUBELESS: | Tubeless taped & valved |
VARIANT SPECS
| HUB | HUB SPACING | BOOST | HOLE COUNT | ADAPTER INCL. | WEIGHT | ERD | ETRTO | SPOKE LENGTH | SPOKE LENGTH | |
| 26" | 20x110 | - | 32H | 15x100 | 845g | 529 | 559x28 | R-258 | L-256 | |
| 27.5" | - | 15x100 | 887g | 554 | 584x28 | R-269 | L-267 | |||
| BOOST | 899g | |||||||||
| 29" | - | 923g | 591 | 622x28 | R-288 | L-286 | ||||
| BOOST | 936g |
Use the table below to determine compatible adapters & service parts, or visit the service parts collection by .
ADAPTERS COMPATIBLE WITH SPANK HEX J-TYPE FRONT HUBS
Boost F15/20 | HEX Ø32 Boost Front Hub Torque Caps Adapter |
|---|---|
F15/20 | HEX Ø32 Front Hub QRx100 Adapter |
HEX Ø32 Front Hub 12x100 Adapter | |
All Hex J-Type Front Hubs | HEX Ø32 Front Hub Boost 15x110 Conversion Kit |
| HEX Ø32 Front Hub Boost 20x110 Conversion Kit |
SERVICE KITS COMPATIBLE WITH SPANK HEX J-TYPE FRONT HUBS
HEX Ø32 Front Hub Replacement Bearing Kit |
