Product Details
＋
- Moderately low 19mm profile height and wide width, balances the benefits of radial compliance with high lateral stiffness and predictable handling
- Radial Compliance improves traction over bumps and chatter, while reducing negative feedback to the rider. Performance and comfort are improved
- 5mm inner width is extremely versatile, fitting tires from 2.0” to 2.6”, and even allowing size tire use without negative squaring off of tire profiles
- Bead Bite tubeless hooks enhance tubeless performance and tire security, even at lower pressures
- RECOMMENDED FOR: ASTM 5, All mountain, trail, enduro, free ride, DH, E-Bike
- RIDER TYPE: HEAVY TO LIGHT RIDER: Heavy to Light Impact
REAR WHEELS TO PAIR WITH:
| SPANK 359 VIBROCORE™ |
|---|
CLASSIFICATION & INTENDED USE: ASTM 5
| ALL MOUNTAIN | TRAIL | ENDURO | FREERIDE |
|---|---|---|---|
| DOWNHILL | GRAVEL | XC | E-BIKE |
| - | - | ✔ |
HUMAN FACTOR
SPANK's recommendations for what body type and ride style this product is suited to.
| BODY WEIGHT & RIDE STYLE: | Heavy Rider | Medium Rider | Light Rider |
|---|---|---|---|
| Heavy Impact | |||
| Light impact |
RIM SPECIFICATIONS
| HOLE COUNT: | 32H / 28H |
|---|---|
| INNER WIDTH (mm): | 30.5 |
| 35 | |
| PROFILE HEIGHT: | 19 |
| TYRE FIT | 2.0" to 2.6" |
BUILD SPECIFICATIONS
| 32H | 28H | |
| BUILD: | A-Class Handbuilt | A-Class Handbuilt |

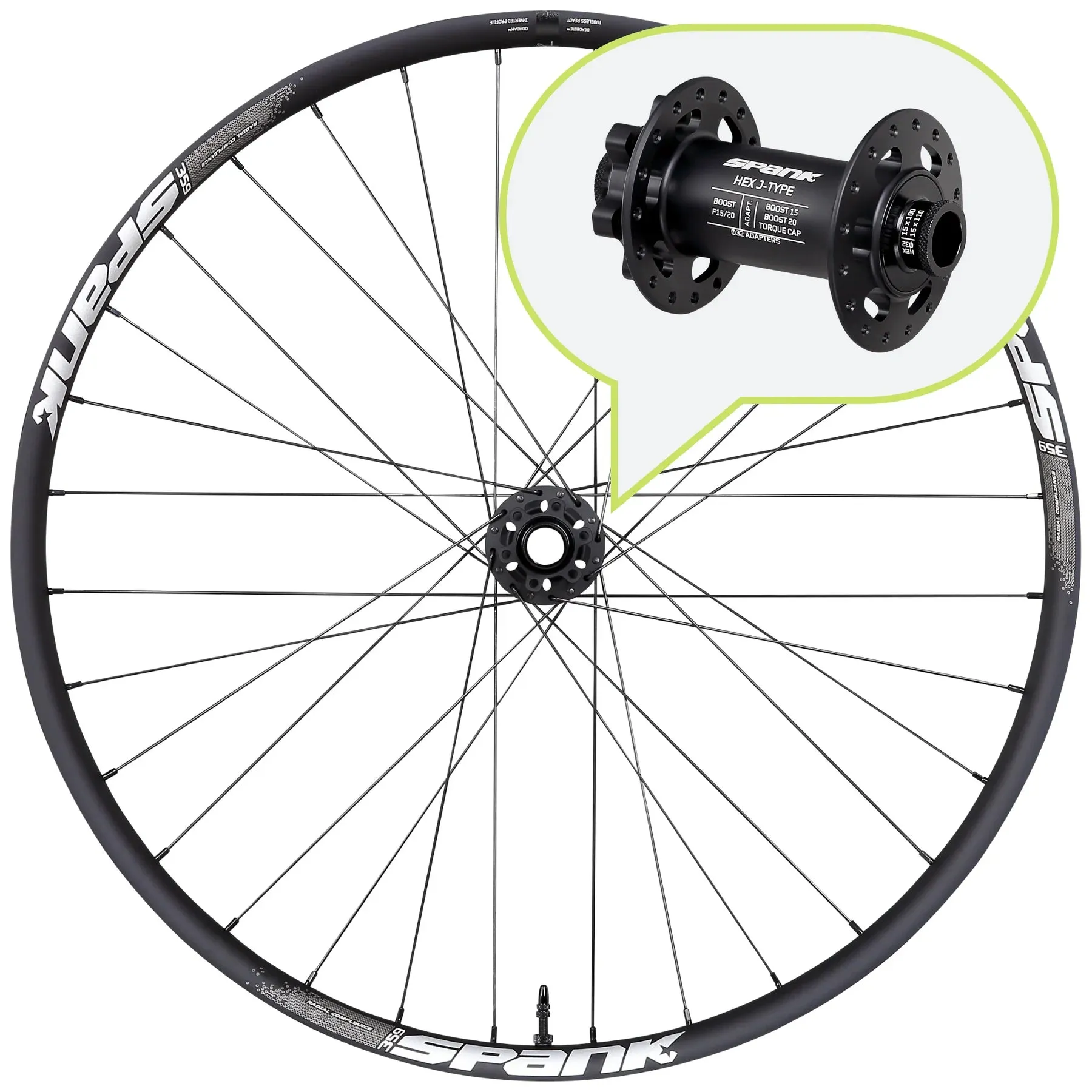

| HUB: | SPANK HEX J-TYPE | SPANK HEX STRAIGHTPULL |
| Tripple butted 2.2/1.8/2.0 | Tripple butted 2.2/1.8/2.0 | |
| NIPPLES: | Brass external | Brass External |
| LACING: | 3 cross lacing | 3 cross lacing |
| VALVE: | F/V Presta | F/V Presta |
| TUBELESS: | Tubeless taped & valved | Tubeless taped & valved |
VARIANT SPECS
| HUB | HUB SPACING | BOOST | HOLE COUNT | ADAPTER INCL. | WEIGHT | ERD | ETRTO | SPOKE LENGTH | SPOKE LENGTH | |
| 27.5" | HEX J TYPE | BOOST 15x110 | BOOST | 32H | BOOST 20x110 | 928g | 560 | 584x30.5 | R-272 | L-270 |
| HEX J TYPE | 20x110 | - | 32H | 15x100 | 916g | 560 | 584x30.5 | R-272 | L-270 | |
| 28H | - | 845g | ||||||||
| HEX J TYPE | BOOST | BOOST 20x110 | 927g | 598 | 622x30.5 | R-292 | L-290 | |||
| HEX J TYPE | 20x110 | - | 32H | 15x100 | 959g | 598 | 622x30.5 | R-292 | L-290 | |
| 28H | - | 888g | R-304 | L-303 |
