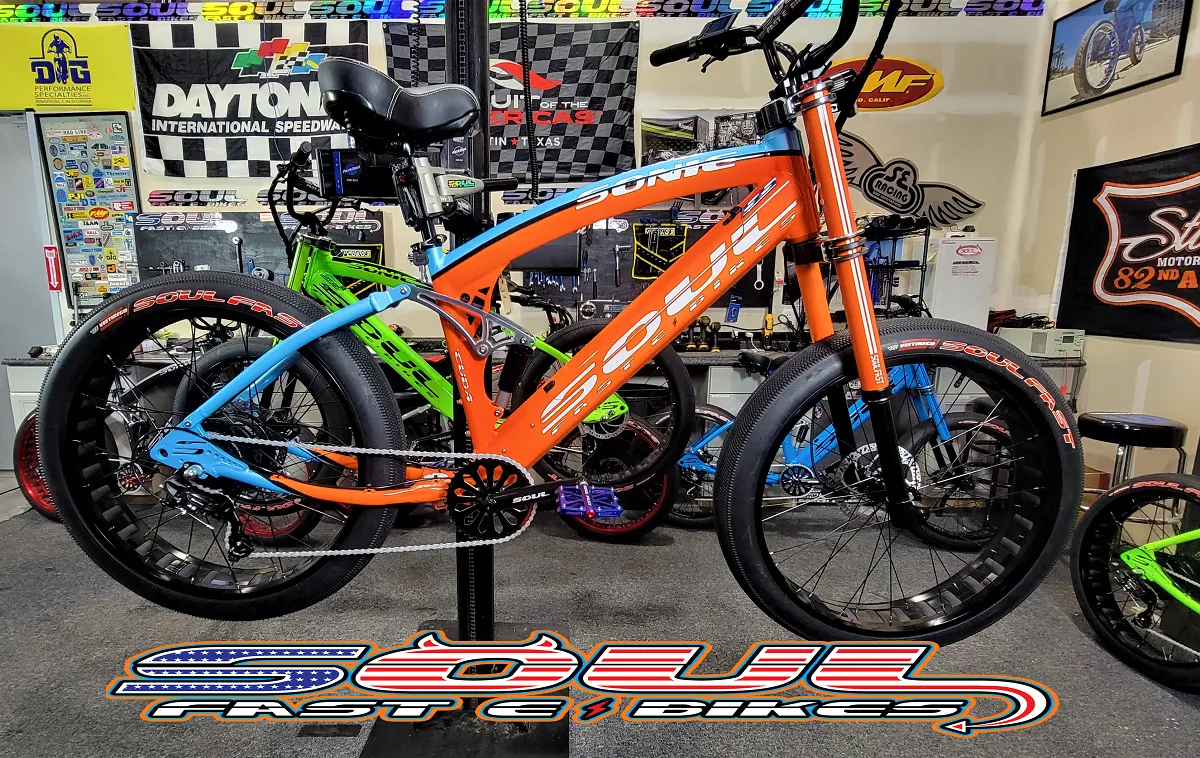

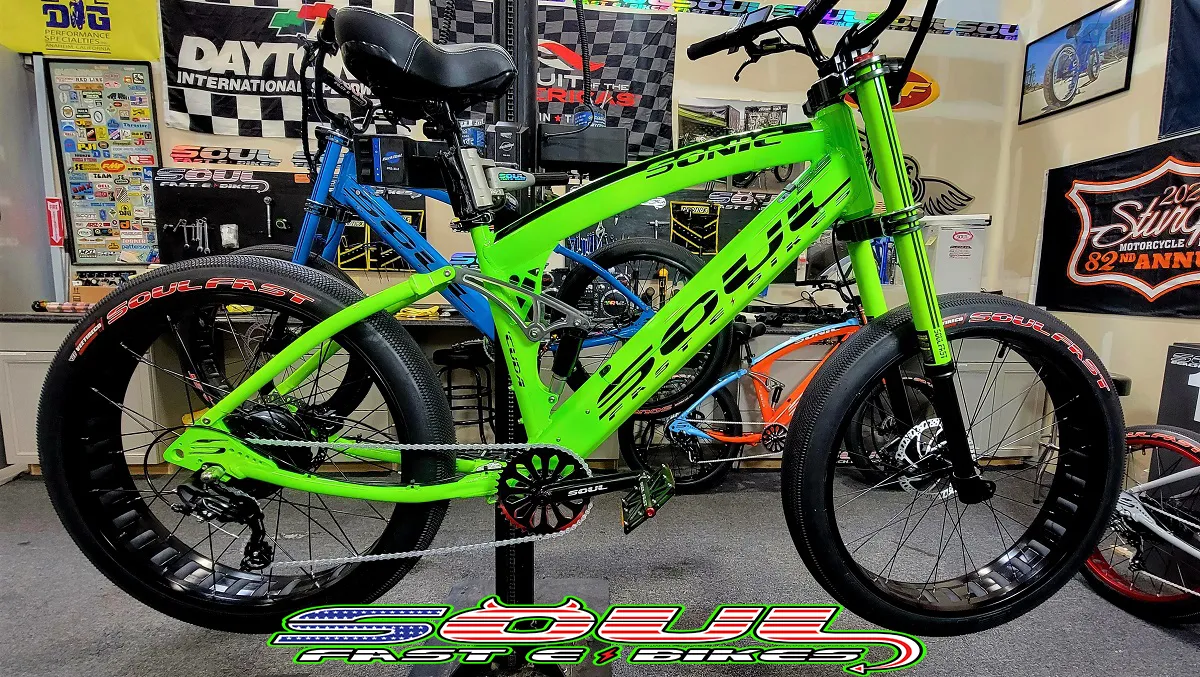

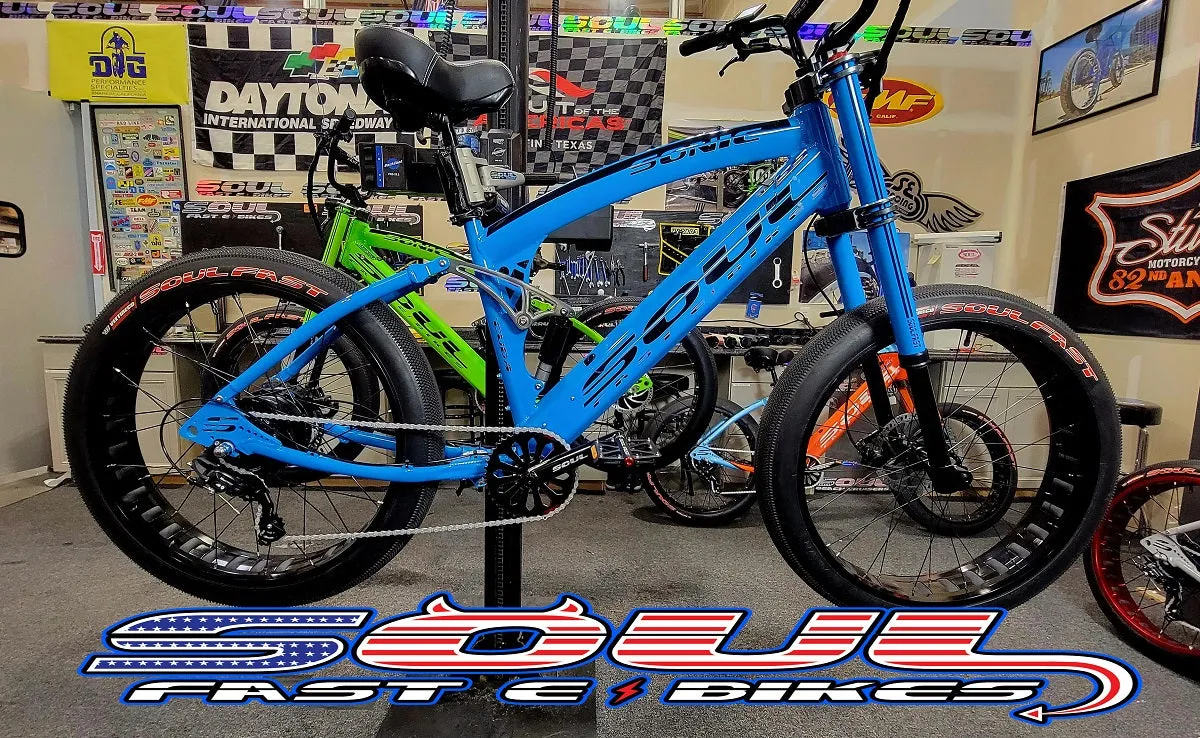

Soul Fast E-Bike Cuda Pro Full Suspension 52V 1500 Electric Bike

MODEL:

• ‘CUDA PRO: BODY POSITION: Upright – Step Thru
• SUGGESTED USE: Cruising & having fun
• ELECTRIC BIKE CLASS: Speed Pedelec (Class 3)
• WARRANTY: Lifetime frame warranty, 1 year parts, 18 months *motor  & battery
• AVAILABILITY: World Wide
• MODEL YEAR: 2025
•  SONIC SABER Details
• TOTAL WEIGHT: 70 lbs
• BATTERY WEIGHT : 5.1 lbs
• MOTOR WEIGHT: 12 lbs
• FRAME MATERIAL: 6061 Aluminum Alloy
• FRAME SIZES: 19 in (48.26 cm)
• SUSPENSION: Fully Adjustable Rebound and Lockout Front and Rear Shocks

GEOMETRY MEASUREMENTS:

specs coming soon

• FRAME FORK DETAILS: MTB Inverted suspension fork with 4” of travel. Rebound adjustment
• FRAME REAR DETAILS: 170mm Hub Spacing, 11/32nd Axle with 15mm Nuts
• GEARING DETAILS: 7 Speed Shimano derailleur
• SHIFTER DETAILS: Shimano Revo grip shift
• CRANKS: *Alum – 48T Chainring and Spider
• PEDALS: XL billet
• HEADSET: Integrated
• STEM: Alum 180º Adjustment Range
• HANDLEBAR: *S31.8mm alum BMX Style, 180mm Rise, 870mm Length, 30º Back Sweep
• BRAKE DETAILS: Tektro hydraulics disc brakes, 180mm Front Rotor / rear Rotor, Motor Inhibitors, 2-Finger Levers with Adjustable Reach.
• SADDLE: Grand Star Oversize, Quilted, Rubber Bumpers, Reflective Logo on Rear
• SEAT POST: Aluminum Alloy
• SEAT POST LENGTH: 350 mm
• SEAT POST DIAMETER: 27.2 mm
• RIMS: 80mm Aluminum Alloy, Punchouts, 36 Hole
• SPOKES: Stainless Steel, 14 Gauge, Black with Chromed Brass Spoke Nipples
• TIRES: Vee Speedster 26×2.8
• WHEEL SIZE: 26 in
• TIRE DETAILS: 20 to 30 PSI (0.4- 2.1 BAR)
• WEIGHT LIMIT: 325lbs
• ACCESSORIES: Integrated front headlight  & rear tail light
• ACCESSORIES: Integrated front headlight  & rear tail light

Electronic Details

• MOTOR BRAND: Bafang 1000 / 1500W peak
• MOTOR TYPE: Hub motor
• MOTOR NOMINAL OUTPUT: 1000 watts
• MOTOR PEAK OUTPUT: 1500 watts under load
• MOTOR TORQUE: 1500w / 100 Newton meters
• BATTERY BRAND: Samsung
• BATTERY VOLTAGE: 52 volts
• BATTERY AMP HOURS: 14AH
• BATTERY CHEMISTRY: Lithium-ion
• CHARGE TIME: 6.5 hours
• ESTIMATED MIN RANGE: 50 miles
• ESTIMATED MAX RANGE: 50 miles
• DISPLAY TYPE: Color with voltage meter, Larger Canbus Display
• READOUTS: Clock, Trip Distance and Timer, Odometer, Current Speed, Average Speed, Maximum Speed, Assist Level (0-5)
• DISPLAY ACCESSORIES: Independent Button Pad on Left, Buttons: Up, Down, M, Power (Hold Down for Walk Mode, Press M to Cycle Trip Readouts, Press Power to Cycle Distance and Range Readouts)
• DRIVE MODE: Cadence Sensing Pedal Assist, Trigger Throttle (12 Magnet Sealed Sensor)
• TOP SPEED: Class 3 – Off road use 28 mph *
