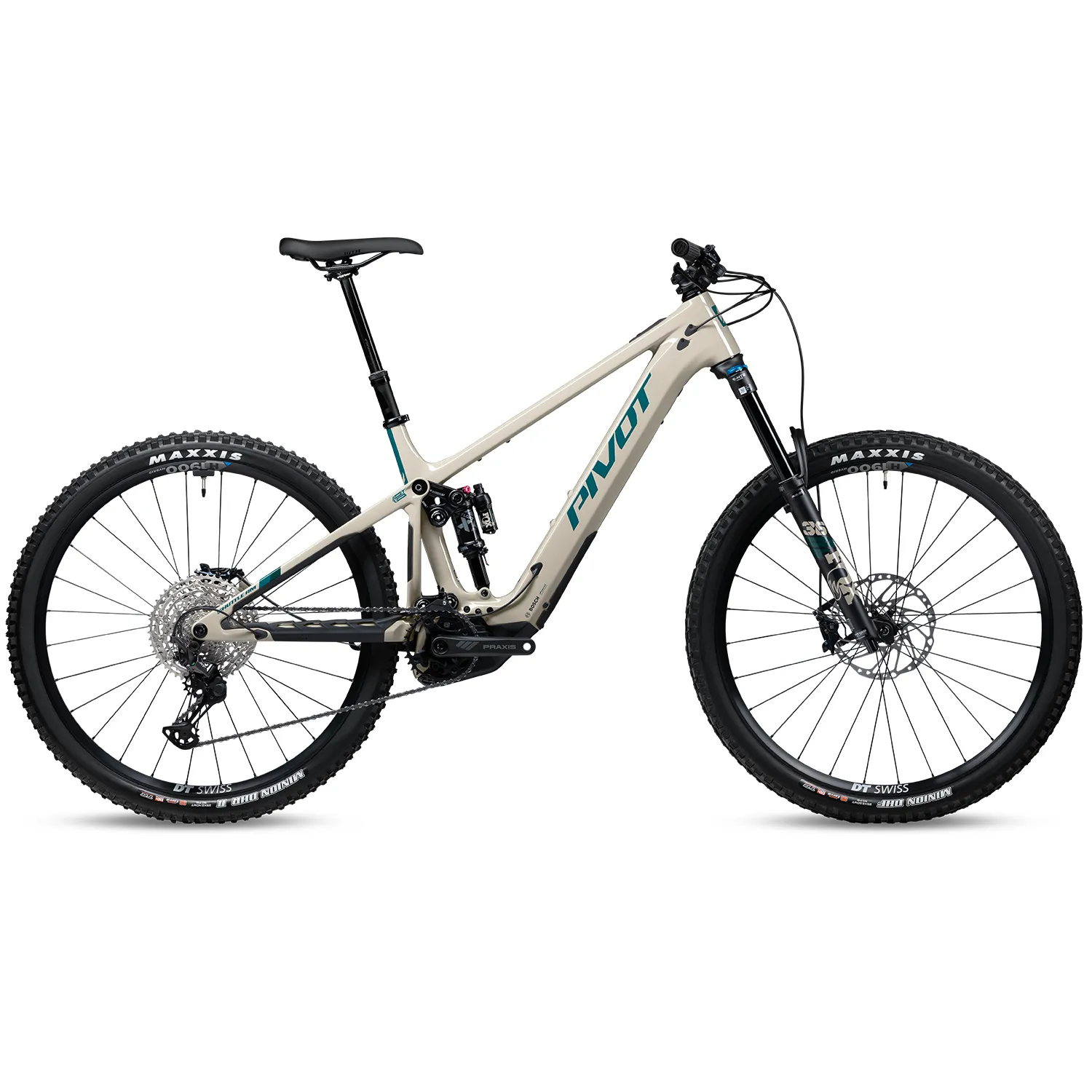

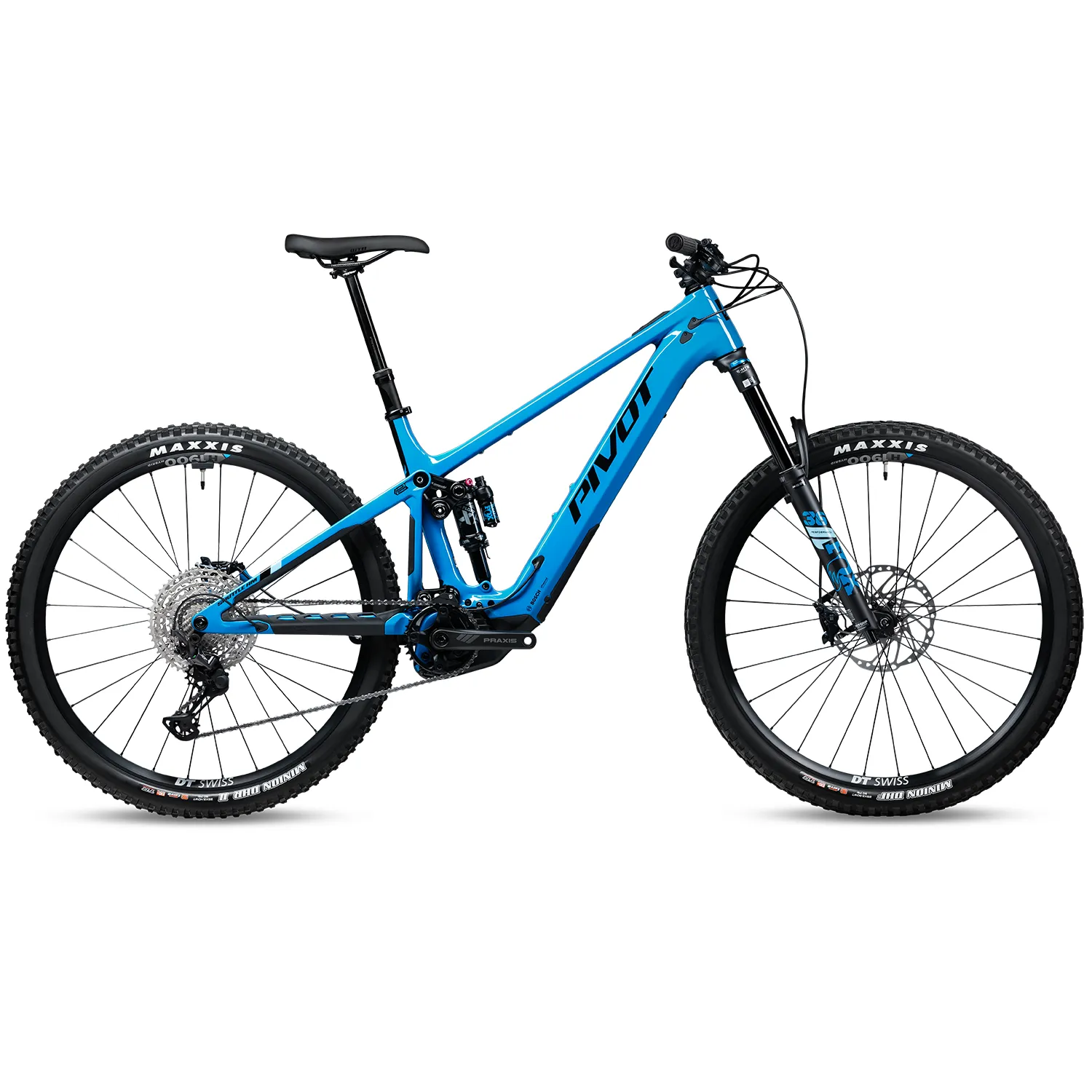

Crafted to be the ultimate all-mountain machine, the Shuttle AM comes equipped with everything you need to conquer any trail on the mountain. Powered by the Performance CX Race motor, all Shuttle AM models deliver class leading performance. With a long-lasting battery, the Shuttle AM provides ample range, allowing you to explore more trails and go the extra mile, or ten.

FEATURES:

• Ultralight Hollow Core Carbon Frame
• Powerfully Smooth Bosch Performance CX Race Motor on all builds
• Long-range 750Wh Battery on all build levels
• Bosch 250wh PowerMore Range Extender Compatible
• Integrated Power and Mode Display
• Wheel Mounted Speed Sensor
• Wireless Bosch Remote
• 160mm Fox Factory and Performance 36 Forks
• Flip-Chip Upper Link Mount
• Mixed Wheel Compatible
• Pivot Dock Tool System Compatible
• Water Bottle Clearance on All Sizes
• Fox Factory Float X Shock with 148mm of Progressive Suspension Travel
• Injection Molded Rubberized Frame Protection
• Full Internal Routing with Pivot Cable Port System

SPECS:

• Kit: Ride SLX/XT
• Msrp: $8,599 USD
• Wheel Size: 29"
• Frame: Shuttle AM
• Wheel Material: Alloy
• Rear Shock: Fox Performance Float X
• Fork: Fox Performance 36 29", 44mm offset, GRIP - 160mm
• Headset: Pivot Precision Sealed Cartridge
• Rear Der: Shimano XT M8100 SGS 12-Speed
• Cassette: Shimano Deore M6100 10-51t
• Shifter: Shimano SLX M7100 ISPEC EV 12-Speed
• Brakes: Shimano SLX M7120 4-piston
• Crankset: Praxis Alloy eCranks E-MTB 34t - 160mm
• Handlebar: Phoenix Race Low Rise Aluminum - 780mm (SM-MD), 800mm (LG-XL)
• Grips: Phoenix Factory Lock-On
• Stem: Phoenix Team Enduro/Trail - 45mm
• Seatpost: SDG Tellis
• Saddle: Phoenix WTB Race High Tail Trail (SM), Phoenix WTB Race Volt Medium (MD), Pivot Pro E-Bike (LG-XL)
• Wheels: Newmen Performance, 30mm - 29" 15x110 F/12x157 R
• Tires: Maxxis Minion DHF 29" x 2.5" WT, TR, 3C, EXO , MAXXTERRAMaxxis Minion DHF 29" x 2.5" WT, TR, 3C, EXO , MAXXTERRA Maxxis Minion DHRII 29" x 2.4" WT, TR, 3C, EXO , MAXXTERRA
• Rotor: Shimano Deore CenterLock - 203mm Shimano Deore CenterLock - 203mm  Shimano Deore CenterLock- 203mm
• Chain: Shimano CN-M6100 12 Speed
• Drive Unit: Bosch Performance CX Race Edition 750wh
