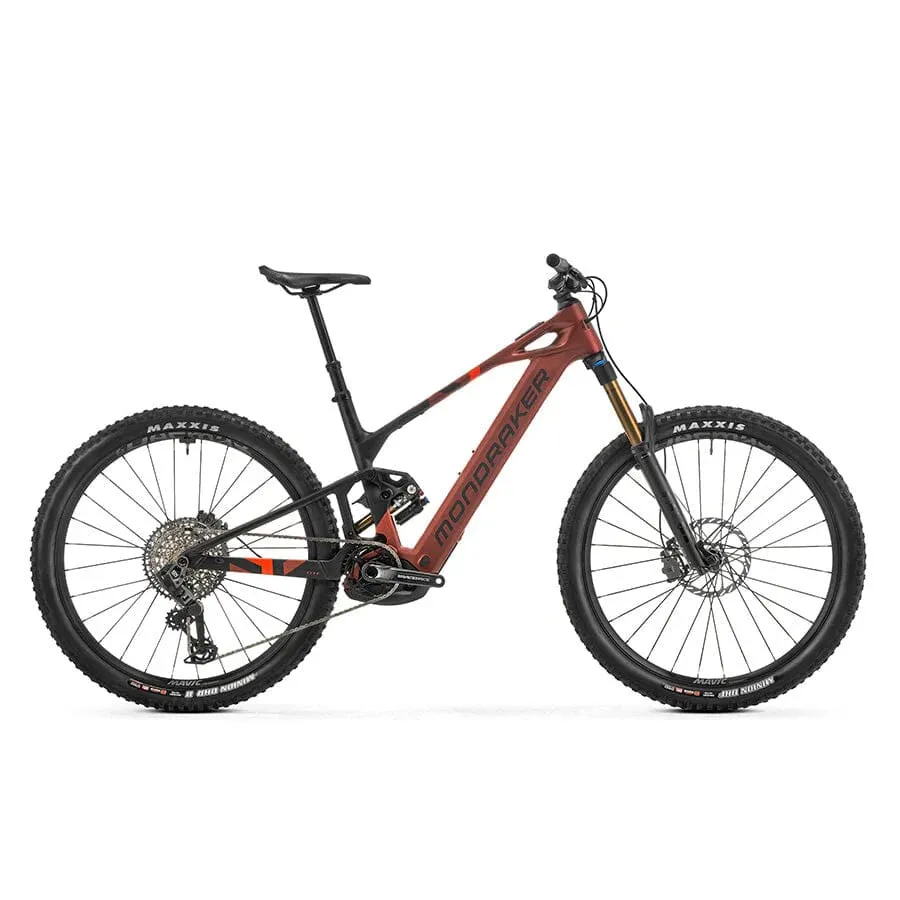

Crafty Carbon RR takes things up a notch when it comes to components, being the first bike in the range to offer SRAM’s wireless GX AXS drivetrain and Fox suspension front and rear with their patented Kashima coating. It also comes with the much talked about SRAM Maven brakes and Bosch’s new 800Wh battery. The RR comes in the spectacular Earth Red / Black / Flame Red paint scheme. ONOFF components have you covered for bars, stem, and the Pija dropper post in different lengths depending on frame size.

FEATURES:

• Mondraker's Forward Geometry improves safety and confidence when descending at speed, combined with sharper, more direct handling and better tracking; plus, more stability on technical climbs and rough terrain combined with better grip and improved control.
• Mondraker's Proprietary ZERO is a virtual pivot suspension system with an exclusive dual-link design. The most unique and exclusive feature of ZERO is that the shock floats between the two suspension links and is compressed from both ends. This makes the rear suspension extremely supple on small bumps and big hit capable, really the most acknowledged and astounding feature of every Mondraker full suspension bike.
• Stealth Carbon is the most advanced carbon fiber development and optimization technology in the Mondraker range. This constantly developing technology brings all the experience gained in making aluminium frames to the top of the range carbon fiber to meet the same innovation, maximum quality, minimum weight, and strength requirements. Carbon fiber layers’ placement is a crucial technique with specific positioning and direction of the different quality fibres for each bike type and model. The result is a frame with the best strength / structural rigidity / trail buzz absorption/lightness ratio, exceptional reliability, and a very attractive and unique 100% Mondraker look.

SPECS:

• Frame: Crafty Stealth Air full Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.

• Sizes: S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm

• Rear shock: Fox Float X Factory Kashima EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

• Shock settings: CS40 compression, RL60 rebound, Rezi B40, LML, 0.2 volume spacer

• Fork: Fox 38 29 Float GRIPX2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload

• Headset: Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock

• Stem: Onoff S6 30mm 0º, 6061 forged alloy CNC, 31.8mm barbore

• Handlebar: Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.

• Grips: Onoff Forest, CNC lock-on, 135mm

• Seatpost: Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)

• Saddle: Ergon SM-10

• Front Brake: Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

• Rear Brake: Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

• Brake lever: Sram Maven Bronze , SwingLink and lever pivot bushings, tools-free reach adjust

• Rims: Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes  Spokes: Mavic J-bend double butted, contactless lacing

• Front Hub: Mavic, Boost 15x110mm, IS 6 bolts

• Rear Hub: Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, XD freehub

• Front Tire: Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO Protection, 120TPI, folding bead

• Rear Tire: Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO Protection, 120TPI, folding bead

• Crankset: Race Face Aeffect-R ebike, 160mm

• Chainring: Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55

• Chain: Sram GX Eagle T-Type, 12s, Powerlock

• Rear Derailleur: Sram GX Eagle AXS, T-Type, 12s

• Shift Levers: Sram Eagle AXS Pod MMX, 12s

• Cassette: Sram XS-1275, 10-52T, T-Type, 12s

• Display: Purion 400 / Bosch Mini Remote / Bosch System Controller

• Motor: New Bosch Performance Line CX (20 Mph) SMART SYSTEM (BDU384Y)

• Battery: Bosch Powertube 800Wh
