This bike ships for free within the continental U.S.

Plus, FREE Tubeless Setup & Kona Wah Wah 2 Composite Pedals (Just ask!)

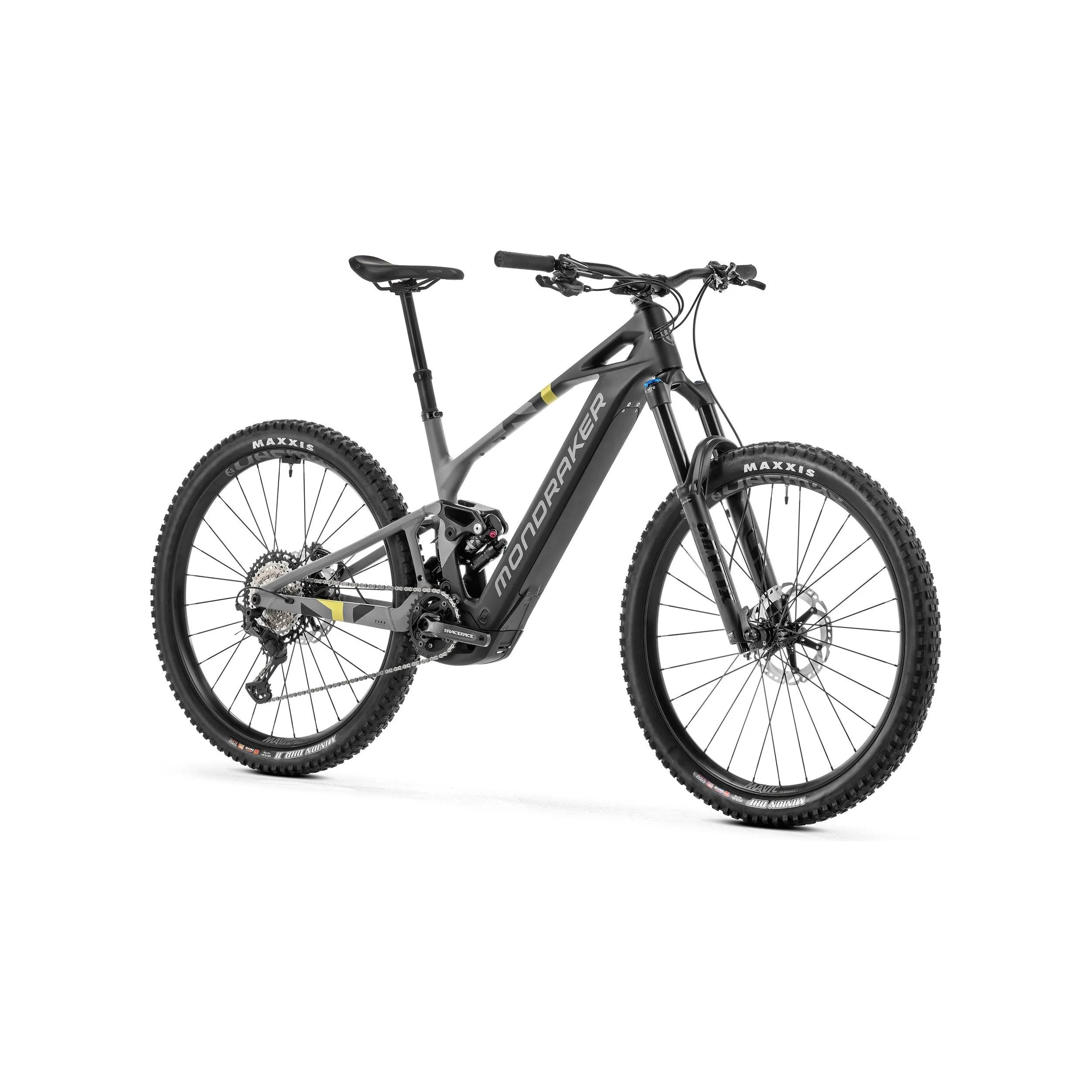

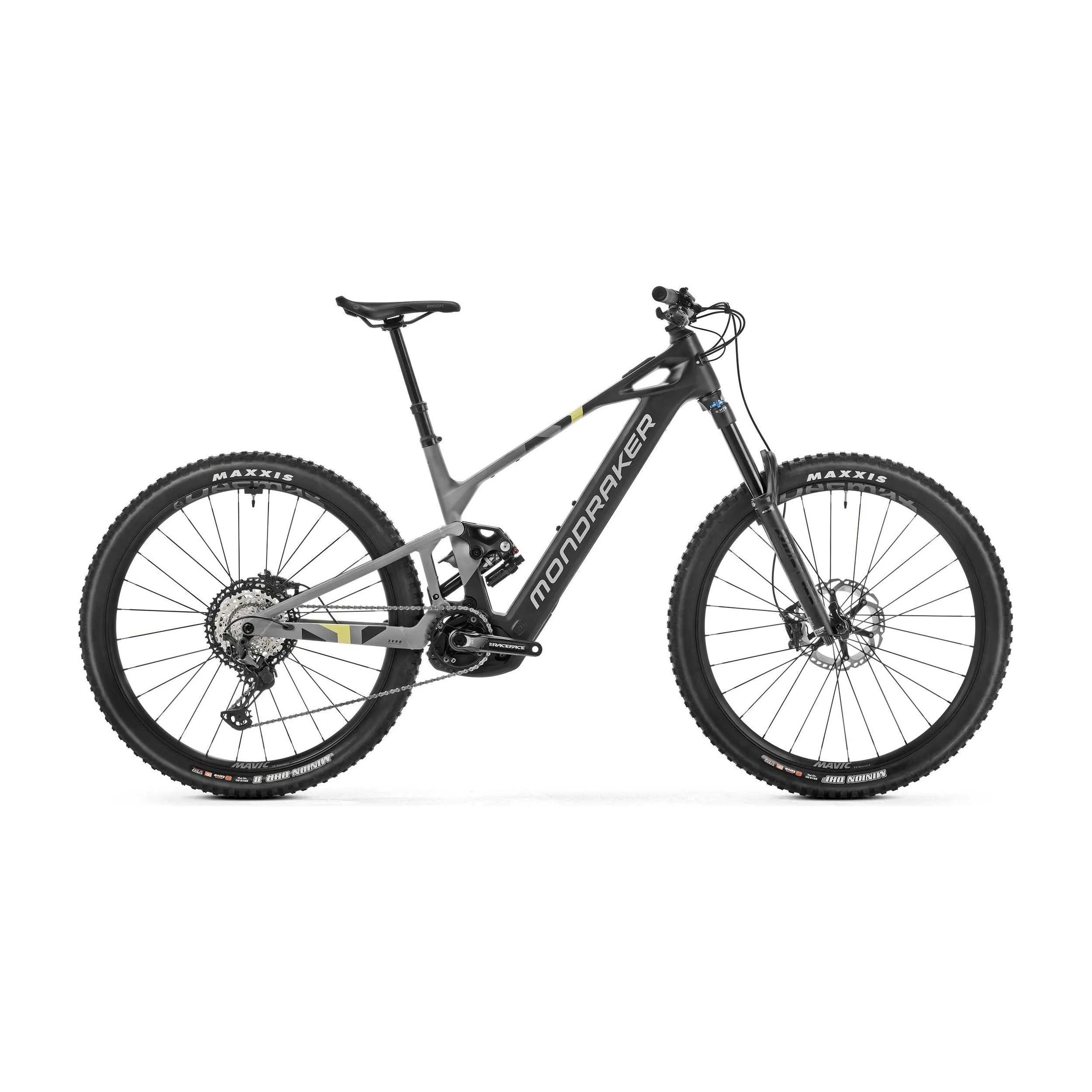

Crafty Carbon R is your ticket to ride Mondraker’s best range of ebikes ever. The Bosch CX motor, the heart of the machine, is combined with Bosch’s fully removable 800Wh battery (accessible via a cover on the underside of the downtube). This is the only build with a Shimano XT M8100 groupset, including XT four piston brakes, XT 12-speed rear mech and 10-51 cassette.

FEATURES:

• Mondraker's Forward Geometry improves safety and confidence when descending at speed, combined with sharper, more direct handling and better tracking; plus, more stability on technical climbs and rough terrain, combined with better grip and improved control.
• Mondraker's Proprietary ZERO is a virtual pivot suspension system with an exclusive dual-link design. The most unique and exclusive feature of ZERO is that the shock floats between the two suspension links and is compressed from both ends. This makes the rear suspension extremely supple on small bumps and big hit capable, really the most acknowledged and astounding feature of every Mondraker full suspension bike.
• Stealth Carbon is the most advanced carbon fiber development and optimization technology in the Mondraker range. This constantly developing technology brings all the experience gained in making aluminium frames to the top of the range carbon fiber to meet the same innovation, maximum quality, minimum weight, and strength requirements. Carbon fiber layers’ placement is a crucial technique with specific positioning and direction of the different quality fibres for each bike type and model. The result is a frame with the best strength / structural rigidity / trail buzz absorption/lightness ratio, exceptional reliability, and a very attractive and unique 100% Mondraker look.

SPECS:

• Frame: Crafty Stealth Air full Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers

• Sizes: S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm

• Rear shock: Fox Float-X LV Performance, 185x55mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

• Shock Settings: CS40 compression, RL60 rebound, Rezi B40, LML, 0.2 volume spacer

• Fork: Fox 38 29 Float GRIP Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload

• Headset: Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock

• Stem: Onoff S6 30mm 0º, 6061 forged alloy CNC, 31.8mm barbore

• Handlebar: Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.

• Grips: Onoff Forest, CNC lock-on, 135mm
  Seatpost: Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)

• Saddle: Ergon SM-10

• Front Brake: Shimano XT M8120, 4 piston caliper, MT800 ICE-Tech 203mm CenterLock rotor, resin pads with fin

• Rear Brake: Shimano XT M8120, 4 piston caliper, MT800 ICE-Tech 203mm CenterLock rotor, resin pads with fin

• Brake Lever: Shimano XT M8100, ergonomic antiskid lever with servo wave, tool less reach adjust, free stroke adjust

• Rims: Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
  Spokes: Mavic J-bend double butted, contactless lacing

• Front Hub: Mavic, Boost 15x110mm, IS 6 bolts

• Rear Hub: Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, MS freehub

• Front Tire: Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO Protection, 120TPI, folding bead

• Rear Tire: Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO Protection, 120TPI, folding bead

• Crankset: Race Face Aeffect-R ebike, 160mm

• Chainring: Race Face, 34T, steel, direct mount

• Chain: Shimano XT M8100, 12s

• Rear derailleur: Shimano XT M8100, SGS, Shadow

• Shift Levers: Shimano XT M8100, Rapid Fire Plus, 12s

• Cassette: Shimano XT M8100 10-51T Hyperglide , 12s

• Derailleur hanger: Sram UDH

• Display: Purion 400 / Bosch Mini Remote / Bosch System Controller

• Motor: New Bosch Performance Line CX (20 Mph) SMART SYSTEM (BDU384Y)
• Battery: Bosch Powertube 800Wh
