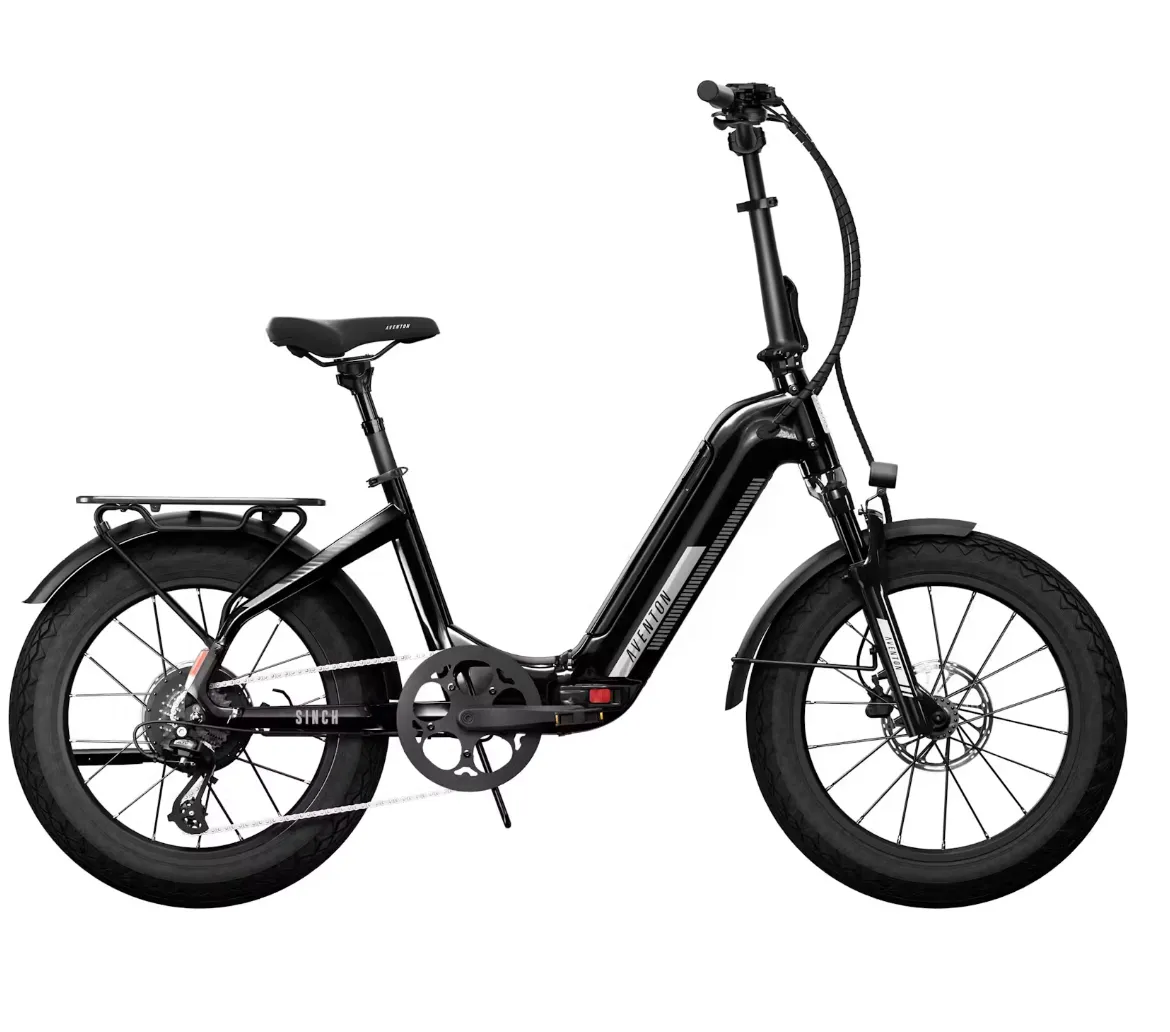

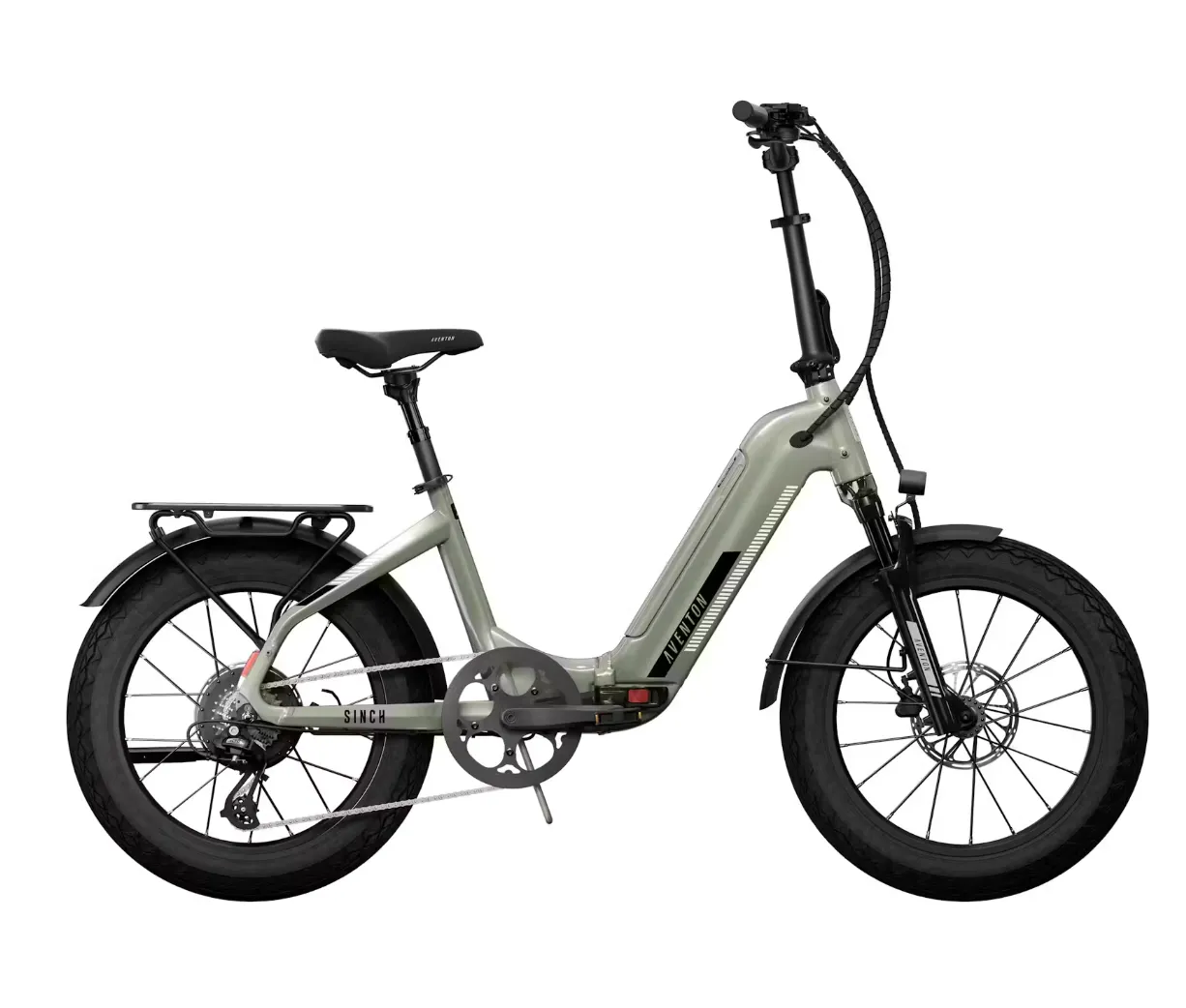

Aventon Sinch 2.5 Fat Tire Step Thru Folding Electric Bike
**CALIFORNIA E-BIKE INCENTIVE PROJECT APPROVED!**
MODEL
Sinch 2.5 Ebike
WEIGHT
68 lbs
TOTAL WEIGHT LIMIT
300 lbs
RIDER HEIGHT
4'11" - 6'2"
BOX SIZE
43 x 24 x 33
CLASS
Class 2 Ebike
WATER RESISTANCE
IPX4
BIKE SAFETY CERTIFICATIONS
BATTERY SAFETY CERTIFICATIONS
RANGE
Up to 55 Miles
FRAMESET
FRAME
6061 Single-Butted Folding Aluminum Alloy with Internal Battery

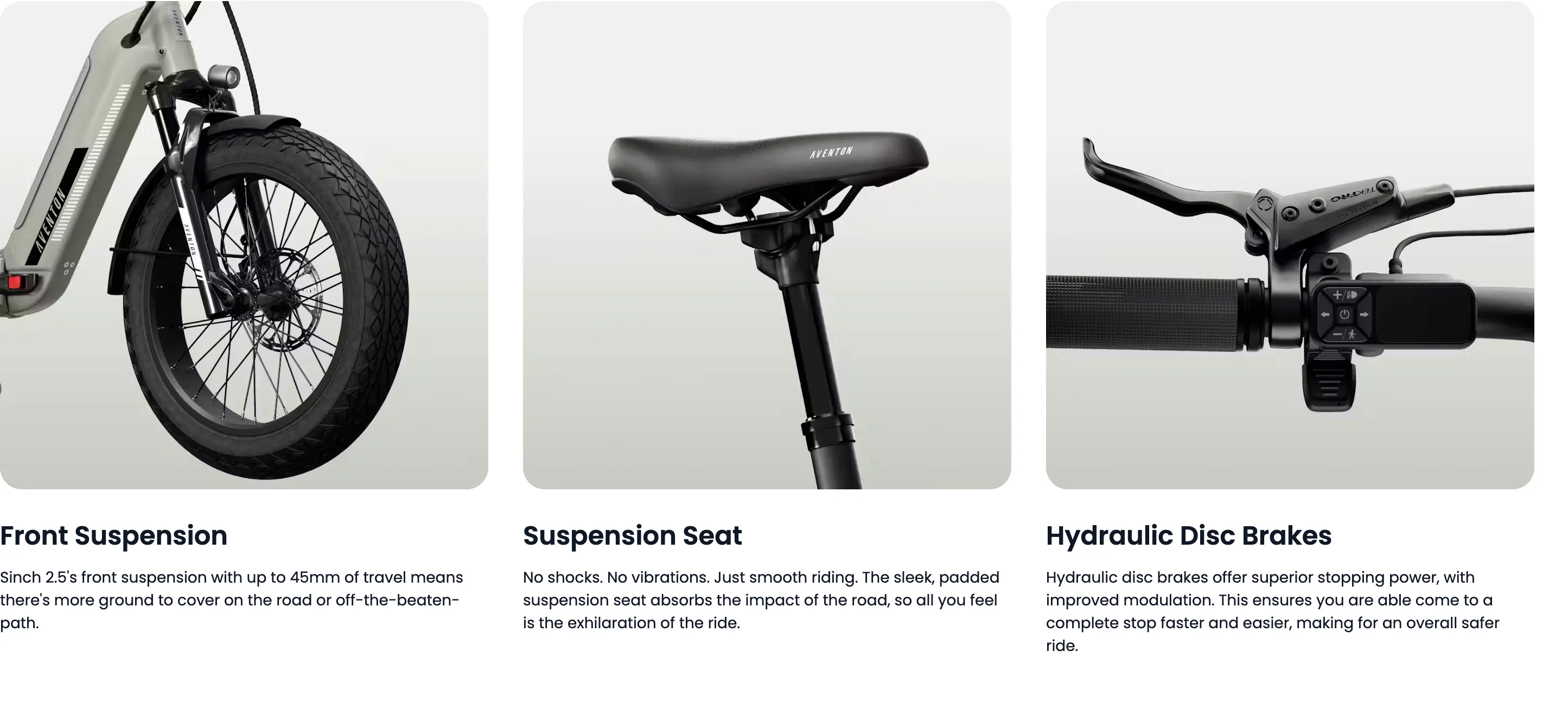

FORK
Aventon coil fork with lock out and black stanchions.
REAR SPACING
177mm
FORK SPACING
135mm
WHEELSET
FRONT WHEEL
20x4", 36-spoke, double-wall aluminum fat tire rim, black finish, with a nutted axle, 13g stainless steel spokes (173mm NDS/175mm DS), 135mm spacing, Schrader valve.
REAR WHEEL
20x4", 36-spoke, double-wall aluminum fat tire rim, black finish, hub drive motor with a nutted axle, 12g stainless steel spokes (128mm NDS/127mm DS), 177mm spacing, Schrader valve.
TIRES
Innova IA-2579 20x4.0
EBIKE SYSTEM
SPEED
Class 2
MOTOR
48v, 500w brushless hub motor
MOTOR TORQUE
60Nm

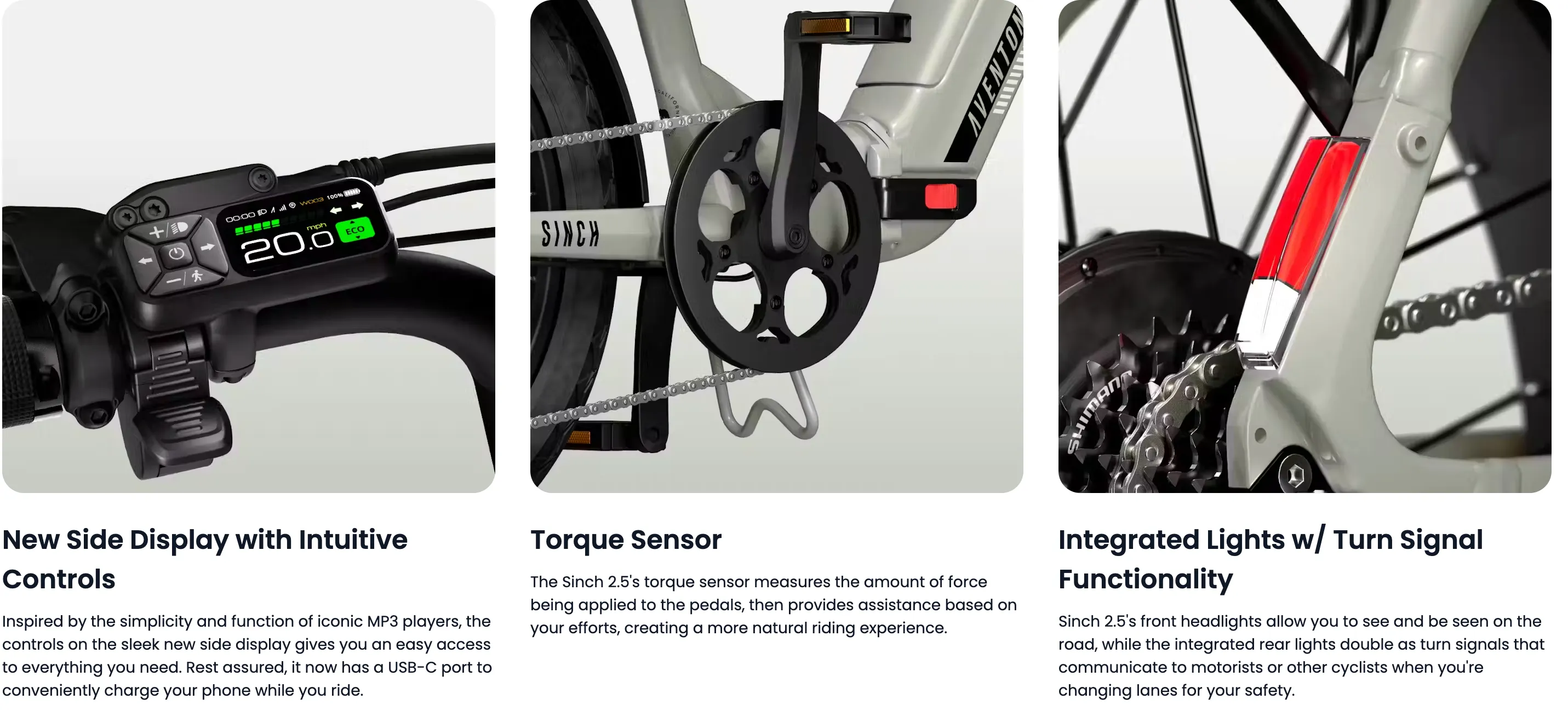

DISPLAY
Aventon BC147
BATTERY
Removable Internal Lithium-ion Battery, 48.8V, 14Ah (636.4Wh)
BATTERY WEIGHT
7.6 lbs
CONTROLLER
48v 22A
THROTTLE
Aventon LH Handlebar Mounted
SENSORS
Double Sided Bottom Bracket Torque Sensor
CHARGER
48V, 3 Amp Fast Charger
CHARGING TIME FROM 0% TO 100%
4-5 Hours
LIGHTS
Front and rear lights integrated
BRAKES
FRONT BRAKE
Tektro HD-T280 Hydraulic disc brake w/o e-cutoff
REAR BRAKE
Tektro HD-T280 Hydraulic disc brake w/o e-cutoff
FRONT BRAKE ROTOR
180mm 6 bolt
REAR BRAKE ROTOR
180mm 6 bolt
DRIVETRAIN
REAR DERAILLEUR
Shimano Altus RD-M310 8 Speed
CHAIN
114 Link, 8 Speed
CASSETTE
13-28T / 8 Speed Shimano CS HG200-8
CHAINRING
52 tooth
CHAINRING BCD
130
CRANKSET
3pc, 170mm crank arm
BOTTOM BRACKET
Square Taper, Sealed, Dual-Sided Torque Sensor, 100x159.5mm
PEDALS
9/16" Composite folding pedals
COCKPIT
SADDLE
Aventon Saddle
SEATPOST
Aventon Suspension Seatpost, 30.9, 350mm Length
SEAT CLAMP
34.9mm Quick Release
HANDLEBARS
Aluminum 25.4mm diameter, 580mm wide
GRIPS
Aventon glue on grips
HEADSET
Sealed Bearing Headset ZS44/28.6| ZS55/40
INCLUDED ACCESSORIES
KICKSTAND
Included, rear mount
REAR RACK
Included
REAR RACK WEIGHT LIMIT
55 lbs
FENDERS
Included
