Product Details
＋

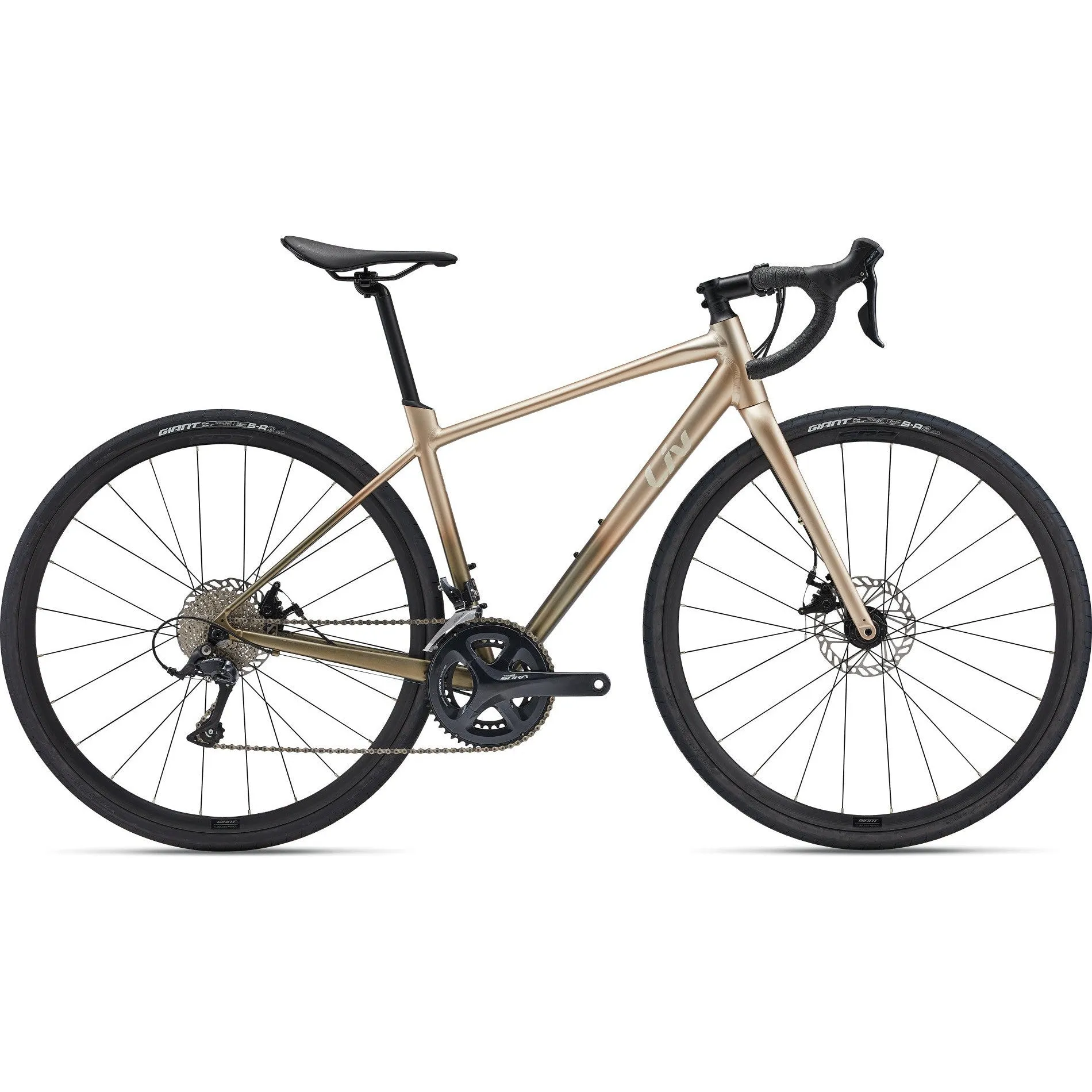

Conquer any terrain with the Liv Avail AR 3. Its smooth ride on pavement and agility on climbs make it the perfect choice for both urban exploration and off-road adventures. Experience confidence and adrenaline with each ride!
Comfort
The lightweight ALUXX frame features the latest endurance geometry with an Advanced-grade composite fork and D-Fuse seatpost to diminish vibrations.
Control
The 32c tires provide stability both on-road and off-road, and select models offer compatibility with tubeless tires up to 38c. With the OverDrive steerer and powerful disc brakes, you'll enjoy precise handling and reliable stopping power for confident riding in any terrain.
Carrying Capacity
Equipped with frame mounts for racks and fenders, the Avail AR ensures you're ready for longer journeys with all the necessary gear and protection.
| Sizes | XXS, XS, S, M, L |

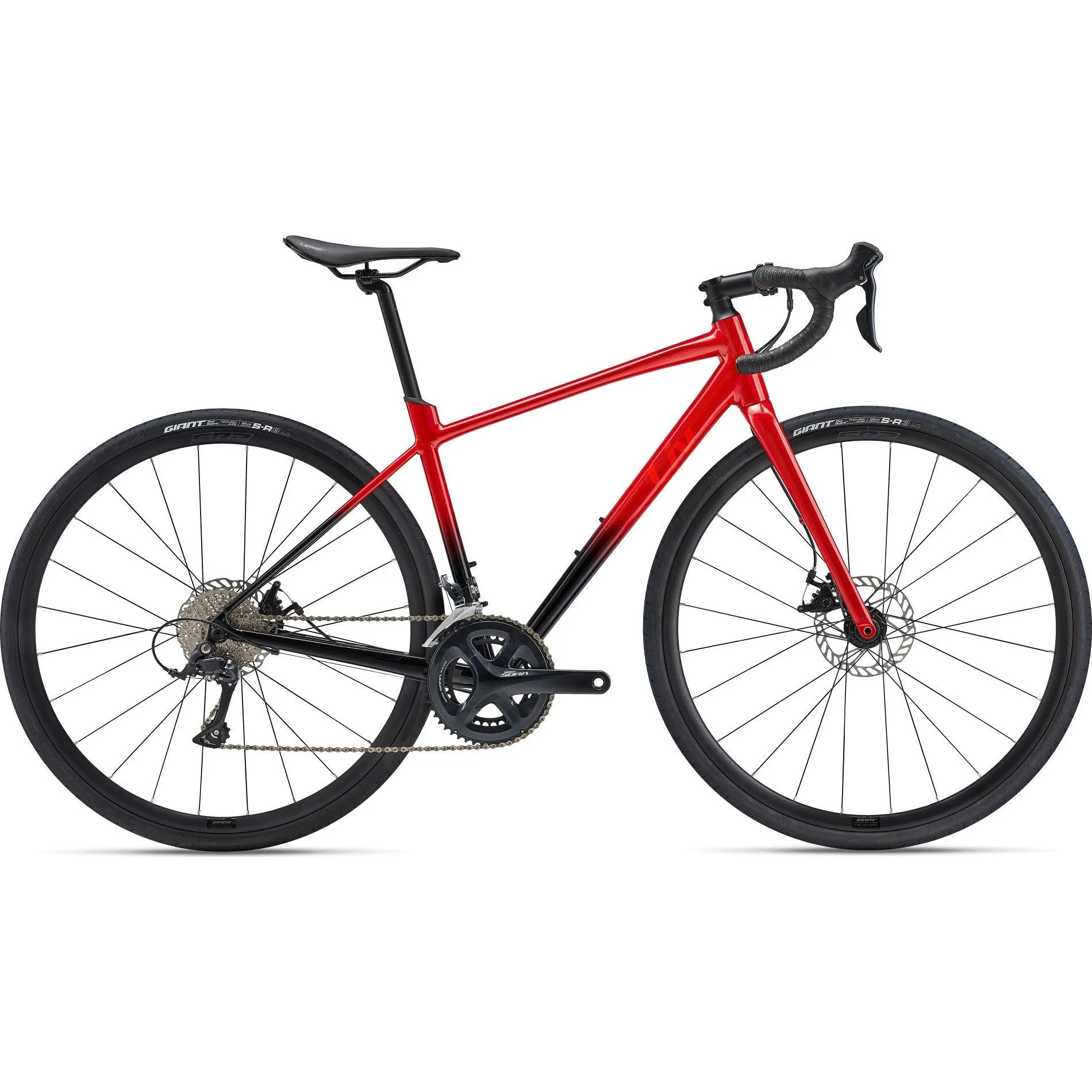

| Colors | Sandshell, Metallic Red |
| Frame | ALUXX-grade aluminum, 12x142mm thru-axle, disc |
| Fork | Advanced-grade composite, full-composite OverDrive steerer, 12x100mm, disc |
| Handlebar | Liv Connect, 31.8mm XXS: 380mm, XS: 380mm, S: 400mm, M: 400mm, L: 420mm |
| Grips | Liv All Condition |
| Stem | Giant Sport XXS: 70mm, XS: 70mm, S: 80mm, M: 90mm, L: 90mm |
| Seatpost | Giant Contact D-Fuse, composite, 14mm offset XXS: 350mm, XS: 350mm, S: 350mm, M: 350mm, L: 350mm |
| Saddle | Liv Approach |
| Pedals | Platform pedals |
| Shifters | Shimano Sora |
| Front Derailleur | Shimano Sora |
| Rear Derailleur | Shimano Sora |
| Brakes | Tektro MD-C550 mechanical, Giant MPH rotors [F]160mm, [R]160mm |
| Brake Levers | Shimano Sora |
| Cassette | Shimano CS-HG400, 9-speed, 11x34 |
| Chain | KMC X9 |
| Crankset | Shimano Sora, 34/50 XXS: 165mm, XS: 165mm, S: 170mm, M: 170mm, L: 172.5mm |
| Bottom Bracket | cartridge |
| Rims | Giant S-R2 Disc wheelset |
| Hubs | Giant alloy, 12mm thru-axle |
| Spokes | stainless |
| Tires | Giant S-R3 AC, 700x32c |
| Extras | 38mm max tire size |
| Weight | The most accurate way to determine any bike’s weight is to have your local Bicycle Warehouse weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
| XS | S | M | L | ||
|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH (inch) | 16.1 | 17.5 | 18.9 | 20.3 |
| B | SEAT TUBE ANGLE | 74.5° | 74.5° | 74.0° | 74.0° |
| C | TOP TUBE LENGTH (inch) | 20.3 | 20.7 | 21.3 | 21.9 |
| D | HEAD TUBE LENGTH (inch) | 4.6 | 5.4 | 6.2 | 7 |
| E | HEAD TUBE ANGLE | 70.5° | 71.5° | 72.0° | 72.0° |
| F | FORK RAKE (inch) | 2.1 | 2.1 | 2.1 | 2.1 |
| G | TRAIL (inch) | 2.7 | 2.4 | 2.3 | 2.3 |
| H | WHEELBASE (inch) | 39.3 | 39.4 | 39.6 | 40.2 |
| I | CHAIN STAY LENGTH (inch) | 16.6 | 16.6 | 16.6 | 16.6 |
| J | BOTTOM BRACKET DROP (inch) | 3.1 | 3.1 | 3.1 | 3.1 |
| K | STACK (inch) | 21.2 | 22.1 | 22.9 | 23.7 |
| L | REACH (inch) | 14.4 | 14.5 | 14.7 | 15.1 |
| M | STAND OVER HEIGHT (inch) | 26.8 | 27.9 | 29 | 30.2 |
| N | HANDLEBAR WIDTH (inch) | 15 | 15.7 | 15.7 | 16.5 |
| O | STEM LENGTH (inch) | 2.8 | 3.1 | 3.5 | 3.5 |
| P | CRANK LENGTH (inch) | 6.5 | 6.7 | 6.7 | 6.8 |
| Q | WHEEL SIZE | 700C | 700C | 700C | 700C |
