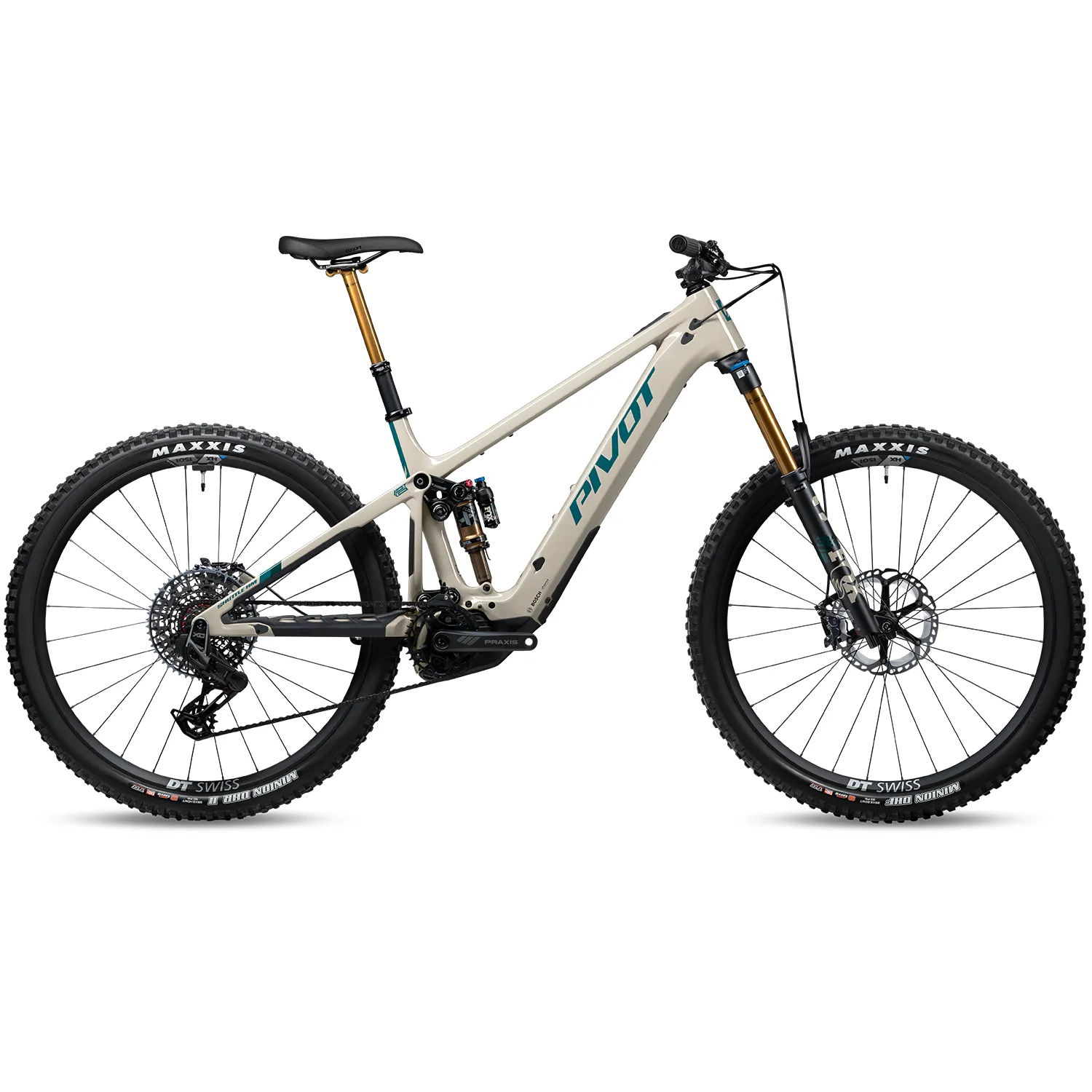

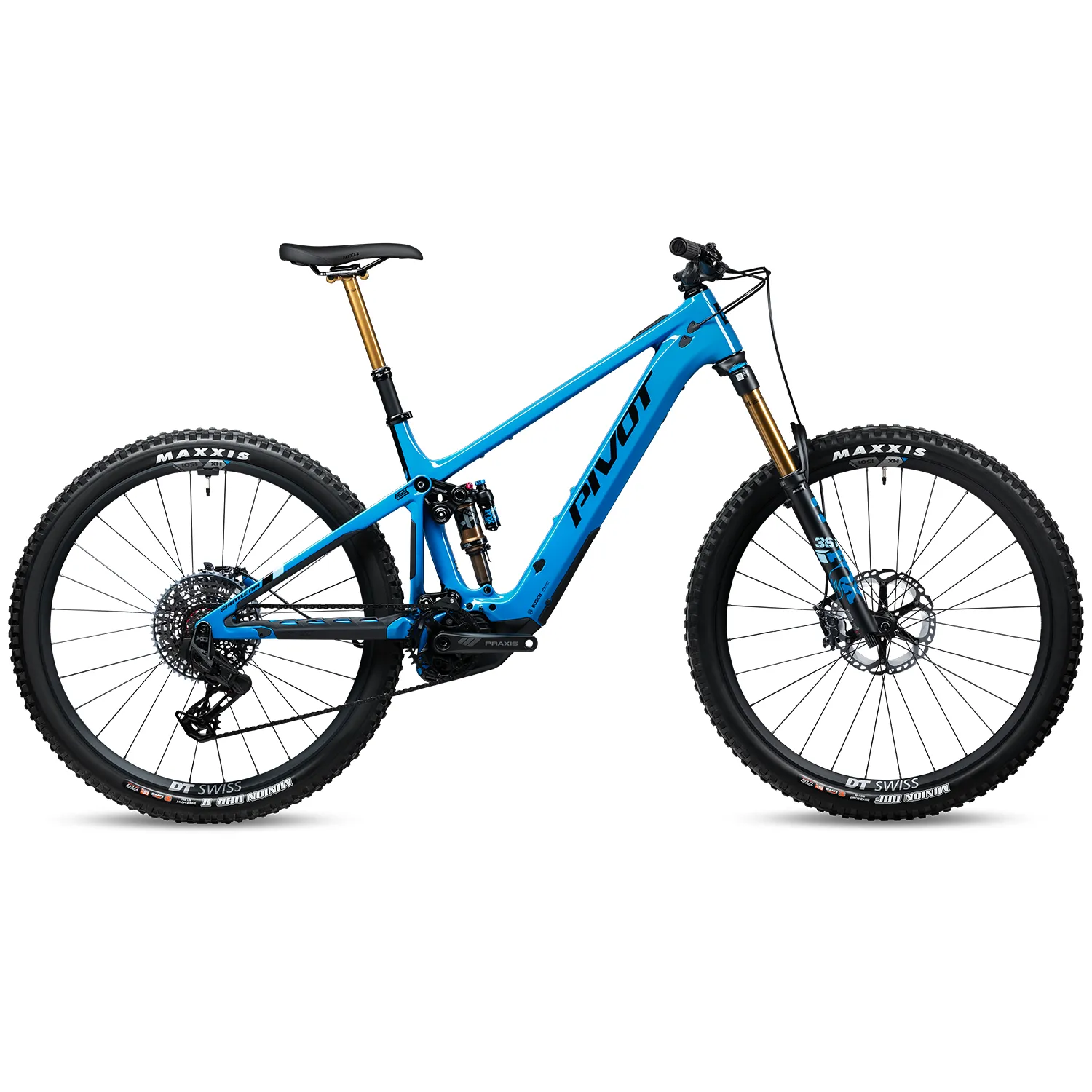

The Shuttle AM doesn’t shy away from touting itself as an all-mountain masterpiece that dominates the realm of e-mountain performance. This awe-inspiring ebike strikes the perfect chord, delivering an unmatched blend of lightweight agility and long-travel prowess that hits the all-mountain sweet spot. Designed with 148 millimeters of rear travel, a 160-mm Fox fork, and purpose-built all-mountain geometry, the Shuttle AM inspires total confidence on any trail. The Pro X0 Eagle Transmission build is powered by a Bosch Performance Line CX motor and a 750Wh battery.

FEATURES:

• Ultralight Hollow Core Carbon Frame
• Powerfully Smooth Bosch Performance Line CX Motor, CX Race Motor on Team Builds
• Long-range 750Wh Battery on Team and Pro Builds, 625Wh battery on Ride Builds
• Bosch 250wh PowerMore Range Extender Compatible
• Integrated Power and Mode Display
• Wheel-Mounted Speed Sensor
• Wireless Bosch Remote

• Flip-Chip Upper Link Mount
• Fully Mulletable and 27.5 ” Wheel Compatible
• Pivot Dock Tool System Compatible
• Water Bottle Clearance on All Sizes
• Fox Factory Float X Shock with 148mm of Progressive Suspension Travel
• Injection Molded Rubberized Frame Protection
• Full Internal Routing with Pivot Cable Port System

SPECS:

• Wheel Size: 29
• Rear Shock: Fox Factory Float X
• Fork: Fox Factory eMTB 36 29", 44 mm offset, GRIP2, 160mm
• Headset: Pivot Precision Sealed Cartridge
• Rear Derailleur: SRAM X0 Eagle Transmission 12-Speed
• Cassette: Sram X0 1295 Eagle Transmission 10-52t
• Shifter: Sram AXS Pod Controller
• Brakes: Shimano XT M8120 4-piston
• Crankset: Praxis Alloy eCranks eMTB 34t
• Handlebar: Phoenix Race Low Rise Carbon - 780mm (SM-MD), 800mm (LG-XL)
• Grips: Phoenix Factory Lock-On

• Stem: Phoenix Team Enduro/Trail
• Seatpost: Fox Transfer Factory Series 150mm (SM), 175mm (MD-LG), 200mm (XL)
• Saddle: Phoenix WTB Volt Pro (Medium Width)
• Wheels: DT Swiss Hybrid HX1501, 30mm - 29", 15x110 F/12x157 R
• Wheel Material: Alloy
• Tires: Maxxis Minion DHF 29" x 2.5" WT, TR, 3C, EXO , MAXXTERRA, Maxxis Minion DHRII 29" x 2.4" WT, TR, 3C, EXO , MAXXTERRA
• Rotors: Shimano XT CenterLock - 203mm
• Chain: SRAM X0 Eagle Transmission Flattop 12-Speed
